WORLD CLASS CRANKSHAFTS

WORLD CLASS CRANKS

The Cycle X crankshafts are known worldwide for being the best.
Checkout the latest crankshafts.

Honda CB750 SOHC Lightened Crankshafts
"The self proclaimed best crankshafts on earth"
Procedures:
Inspected journal measurements and straightness.
Blind hole ball bearings removed and 50 plus years of crud removed.
Connecting rod oil holes enlarged and relieved.
Lightened ... Not to much. Not to little. Perfect 20lbs for street and race.
Main bearing groove modification for more available oil if required.
Micro polished journals.
Balanced to absolute perfection. (the best)
Race proven and street life friendly.
$ 499.00 Outright Sale - Call Or Email To Order

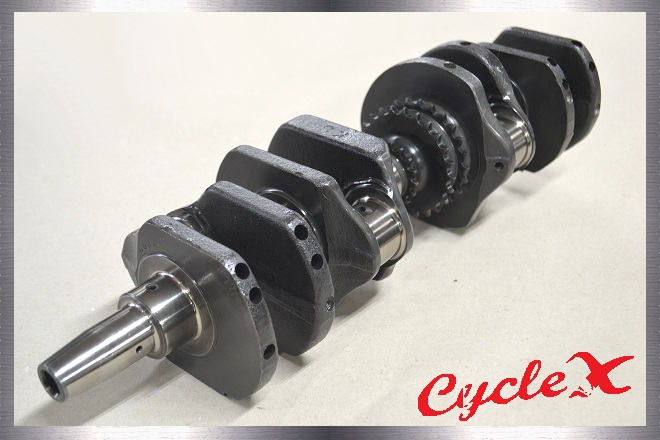

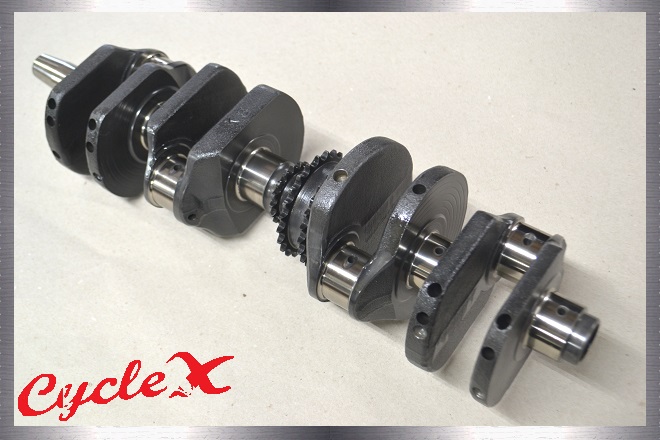

69mm Honda CB750 (69-78) SOHC Stroker Crankshaft

This crankshaft has been freshly refurbished, Stroked to 69mm (63mm is stock), Micro polished, Balanced to perfection.

Inspected and magnafluxed, increased stroke to 69mm, and dynamic balanced.

Ion-plasma nitrided, straightened, and micropolished all journals.

This chart shows the displacement increases when using this 69mm stroker crankshaft.

Bore (mm)	Displacement (cc)
61.00	807
65.00	888
67.00	973
67.50	1002
70.00	1062
73.00	1171

ENL-69MMSC $1,484.00 (Outright sale)

CALL OR EMAIL TO ORDER

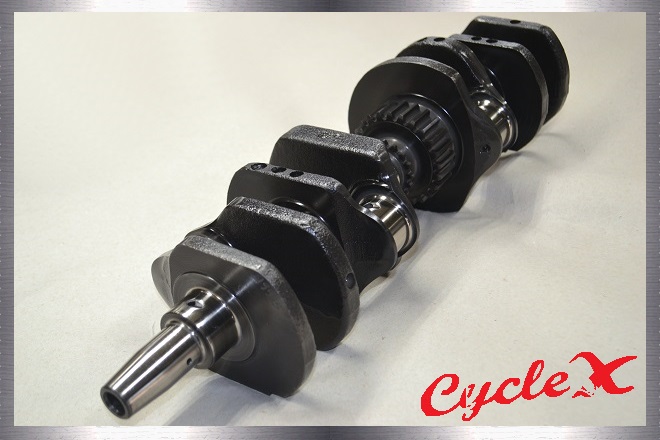

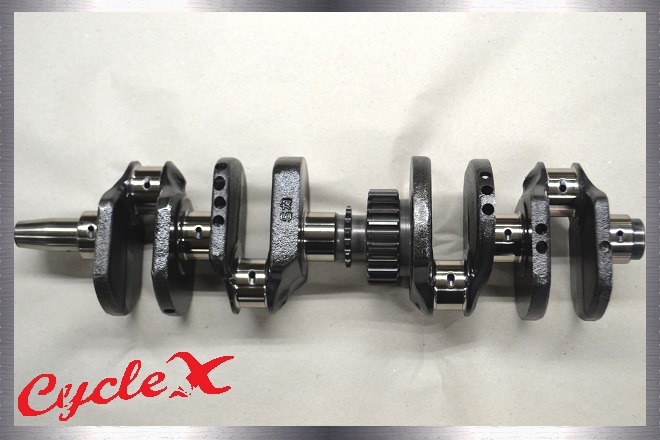

69mm Honda CB750 (69-78) SOHC Stroker Crankshaft "Auto"

Why a Hondamatic crankshaft?
Many people feel the "auto" crankshafts are better for big power because of the stronger "Hyvo" chain going from the crankshaft to the transmission.
These crankshafts also use the standard cam chains which makes cam chain tensioner selections easy.

This Hondamatic crankshaft has been freshly refurbished, Stroked to 69mm (63mm is stock), Micro polished, Balanced to perfection.

Inspected and magnafluxed, increased stroke to 69mm, and dynamic balanced.

Ion-plasma nitrided, straightened, and micropolished all journals.

This chart shows the displacement increases when using this 69mm stroker crankshaft.

Bore (mm)	Displacement (cc)
61.00	807
65.00	888
67.00	973
67.50	1002
70.00	1062
73.00	1171

ENL-SCA $1,584.00

CALL OR EMAIL TO ORDER

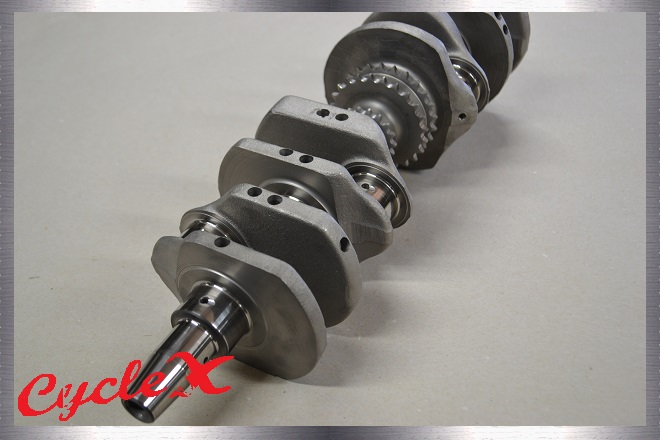

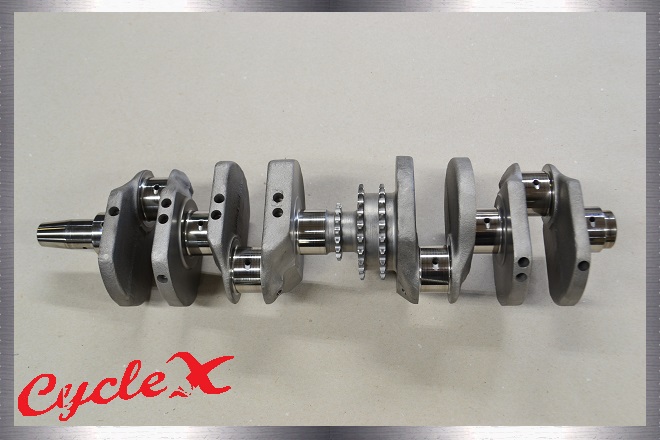

Cycle X Stock Weight Balanced Crankshafts

These crankshafts feature all the refurbishing procedures of our high performance super cranks.

✔ Inspected and measured.
✔ Blasted. (Soda, glass beaded or vapor.)
✔ Oiling holes drilled larger. (Connecting rod holes.)
✔ Oiling holes cupped. (Relieved.)
✔ Micro polished.
✔ Balance to perfection. (The best.)

With Good Exchange: $249.95 ENL-010 Cycle X Race Team Approved
Call to order.

Without Exchange: $334.95 ENL-010 Cycle X Race Team Approved

CALL OR EMAIL TO ORDER

Cycle X Stock Weight "Honda Spec" Balanced Crankshafts

These crankshafts feature all the refurbishing procedures of our high performance super cranks.

With Good Exchange: $159.95 ENL-011 Cycle X Race Team Approved
Call to order.

Without Exchange: $244.95 ENL-011 Cycle X Race Team Approved

CALL OR EMAIL TO ORDER

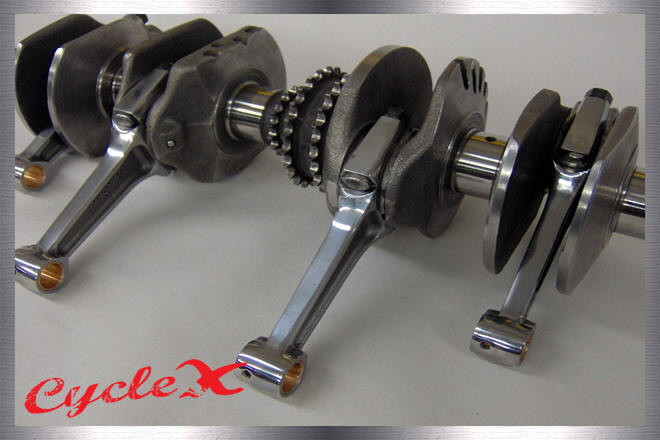

Cycle X (Lamb Chop) Lightened and Balanced Crankshaft Assembly

Many people have experienced the benefits of lightened and balanced crankshafts.
-Lightened crankshaft (not to much, not to little)
-Balanced to perfection (state of the art balancing equipment)
-Micro polished journals (same technique as Penske racing)
-Cycle X super rods are installed with OEM Honda rod bearings.
Ready to go!

Now comes with ARP bolts free of charge!

With Good Exchange: $989.95 ENL-007 Cycle X Race Team Approved

Call to order.

Without Exchange: $1,074.95 ENL-007 Cycle X Race Team Approved

CALL OR EMAIL TO ORDER

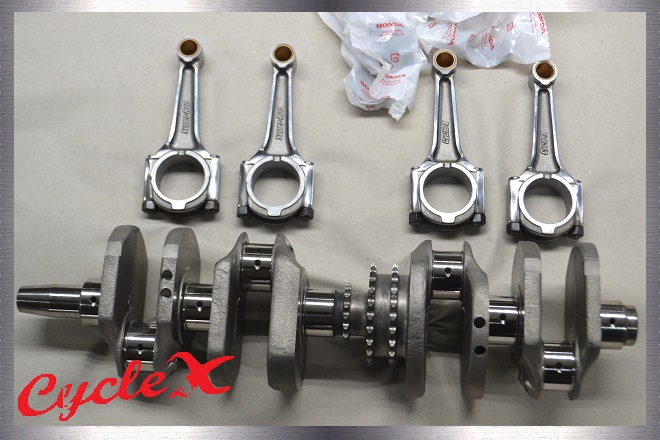

Assembled Stock Weight "Escargot" Crankshaft with Cycle X Super Rods

These crankshafts are assembled with Honda OEM rod bearings, ARP world class bolts, indestructible Cycle X super rods. The crankshaft has the connecting rod oil holes enlarged and relieved for added oil volume. The blind hole ball bearings have been removed and the crankshaft has been thoroughly cleaned. The blind holes are then tapped and socket head set screws are installed.
Balanced to perfection.
Race proven and the Super-rods are celebrating their 21st birthday.

With Good Exchange: $947.95 ENL-ESC Cycle X Race Team Approved

Call to order.

Without Exchange: $1,032.95 ENL-ESC Cycle X Race Team Approved

CALL OR EMAIL TO ORDER

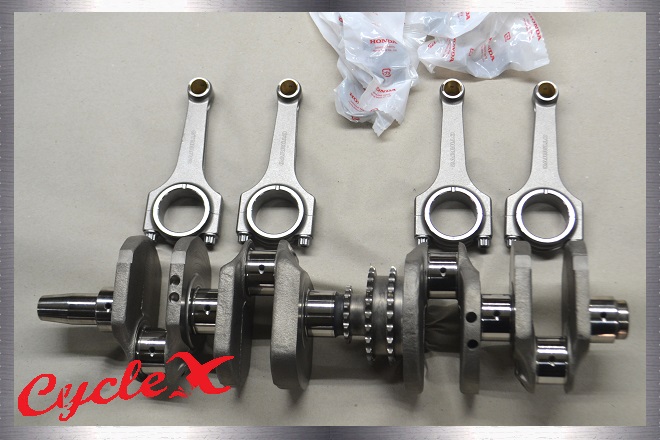

Assembled Stock Weight "CARRILLO" Crankshafts

These crankshafts are assembled with Honda OEM rod bearings and CARRILLO world class connecting rods. The crankshaft has the connecting rod oil holes enlarged and relieved for added oil volume. The blind hole ball bearings have been removed and the crankshaft has been thoroughly cleaned. The blind holes are then tapped and socket head set screws are installed.
Balanced to perfection.
Race proven. Best combination on the planet earth.

With Good Exchange: $1,643.95 ENL-CARRILLO Cycle X Race Team Approved

Call to order.

Without Exchange: $1,728.95 ENL-CARRILLO Cycle X Race Team Approved

CALL OR EMAIL TO ORDER

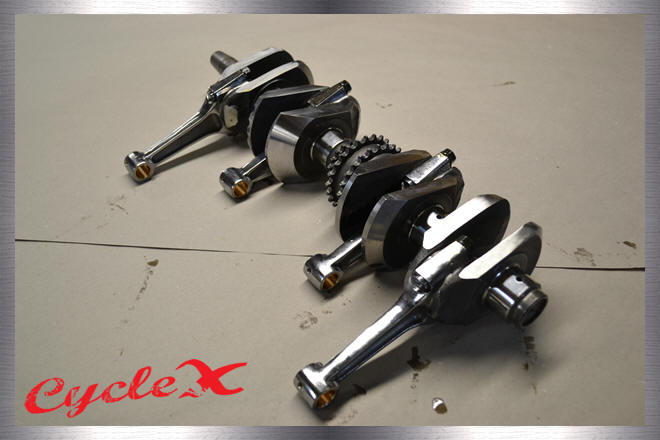

Cycle X (Prime Rib) Super Crankshaft Assemblies

This Super crank is for you serious race folks.
Cycle X super cranks weigh 17.6 lbs (stock is 22.8, although stock cranks vary in weight a bit)
-Lightened (turned and milled)
-Balanced.
-Deburred.
-Soda blasted.
-Journal oil holes relieved.
-Micro polished.
-Oil ball bearings removed and tapped for socket style plugs.
-Cleaned and ready to go

-Cycle X super rods are installed with OEM Honda rod bearings, ready to go!

Now comes with ARP bolts free of charge!

With Good Exchange: $1,189.95 ENL-009 Cycle X Race Team Approved

Call to order.

Without Exchange: $1,274.95 ENL-009 Cycle X Race Team Approved

CALL OR EMAIL TO ORDER

Crank (Stock Weight) Balancing (Deluxe Version)

Balanced with journal oil holes relieved, soda blasted , micro polished and oil hole ball bearings are removed and tapped for socket style plugs. Cleaned and ready to go.

$199.95

Alternator Balance Only

We have seen alternators out of balance up to 4 grams. Add an out of balance crankshaft and...well, you know.

$59.00

Lightened and Balanced Alternator

We have seen alternators out of balance up to 4 grams. Add an out of balance crankshaft and...well, you know.

$149.00
