DOHC Parts |

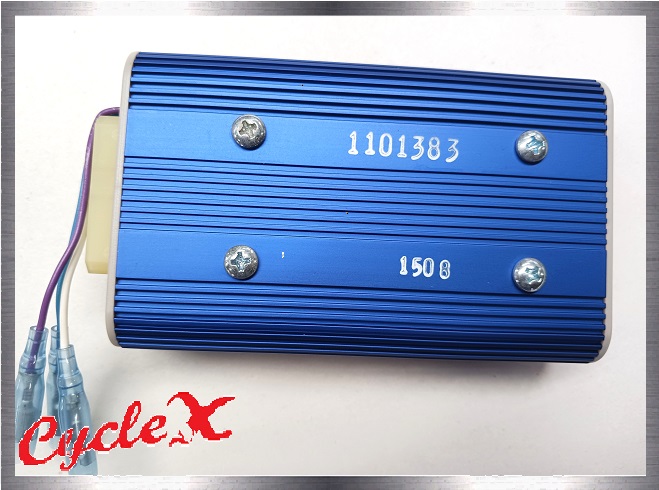

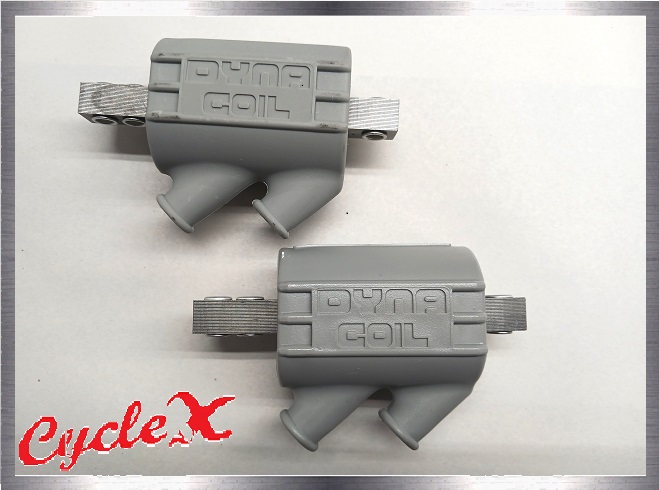

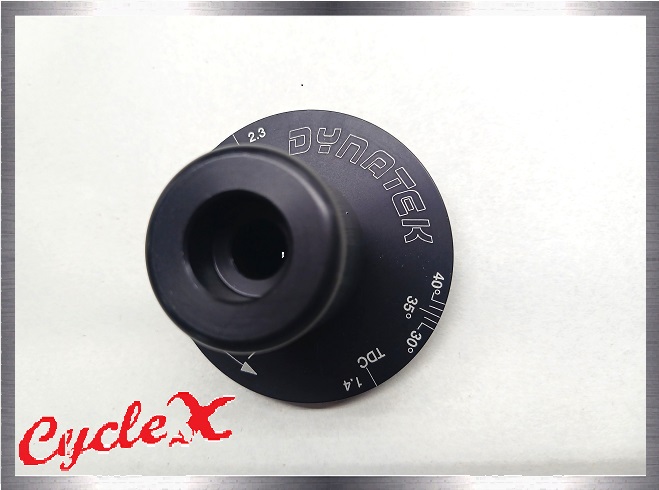

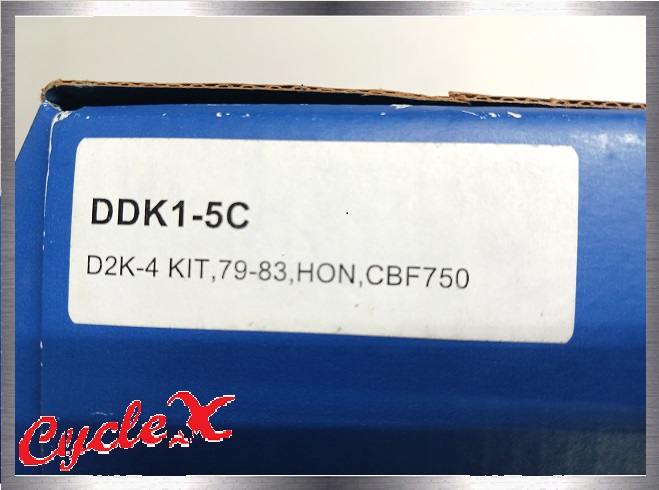

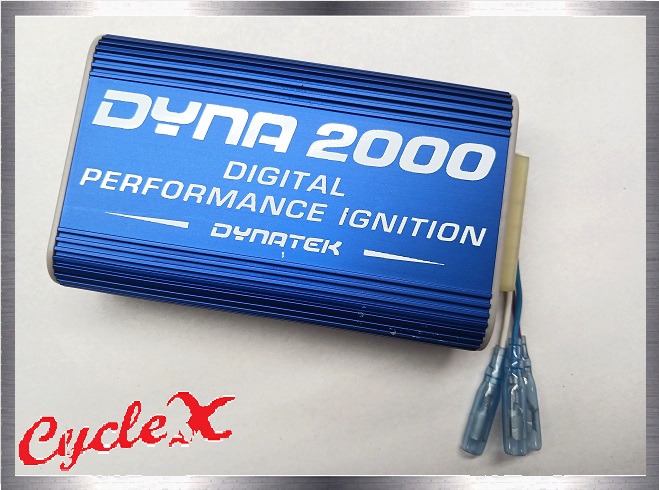

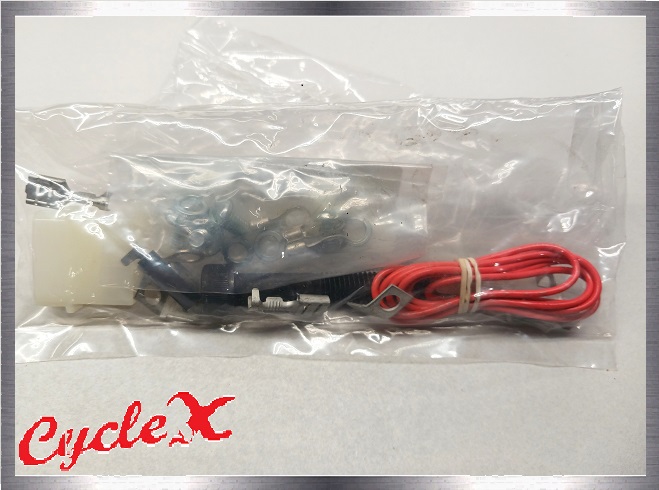

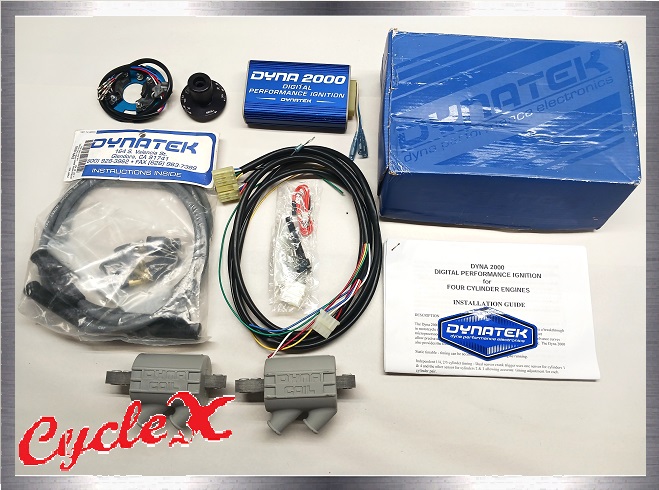

Honda cb750, 900, 1100 (79-83) Complete Dyna ignition kit (DDK1-5C) New

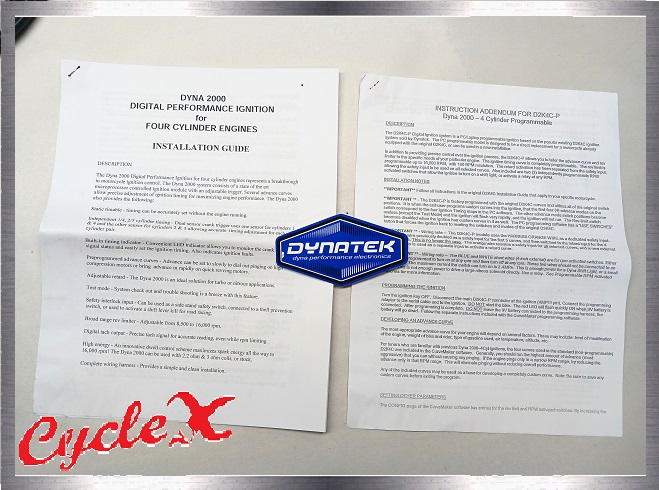

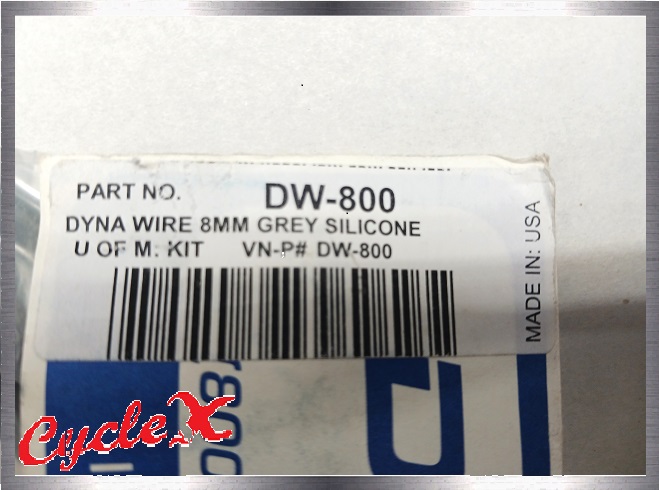

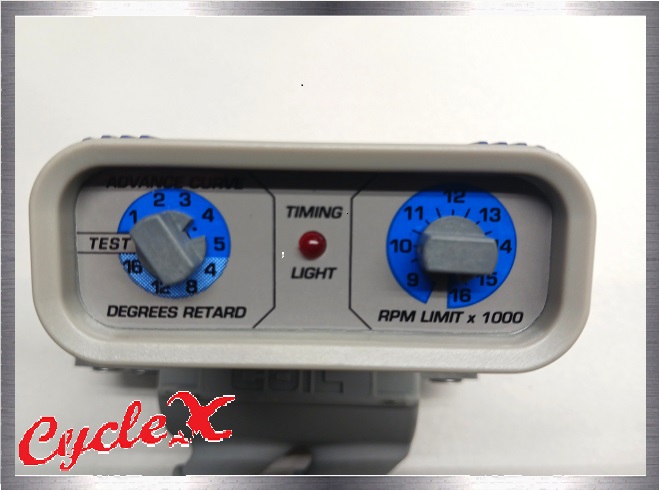

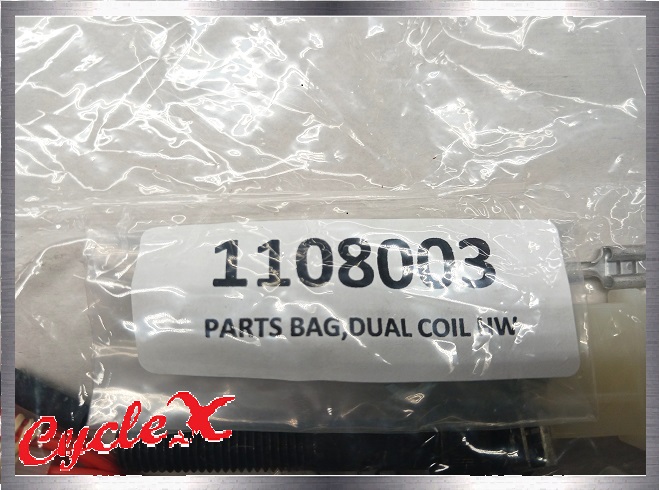

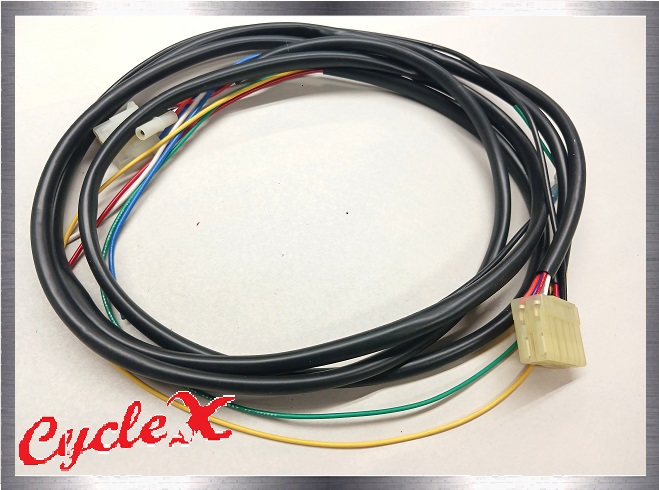

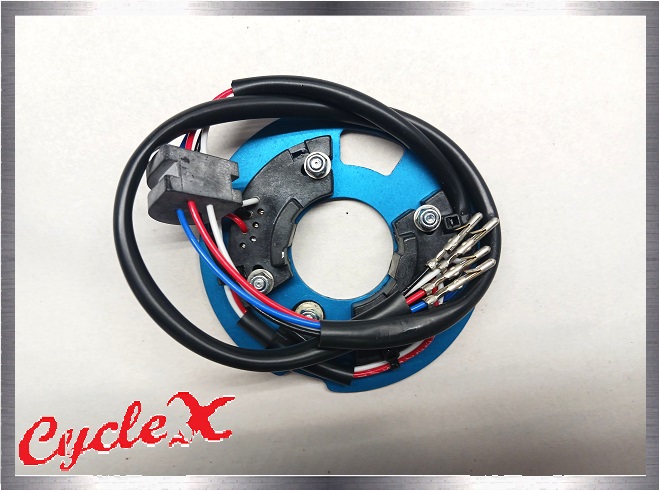

Here is a Dyna DDk1-5C electronic kit for a 79-83 Honda cb750. Honda cb900 and a Honda cb1100 F. EXO-041 $ 375.00
|
|

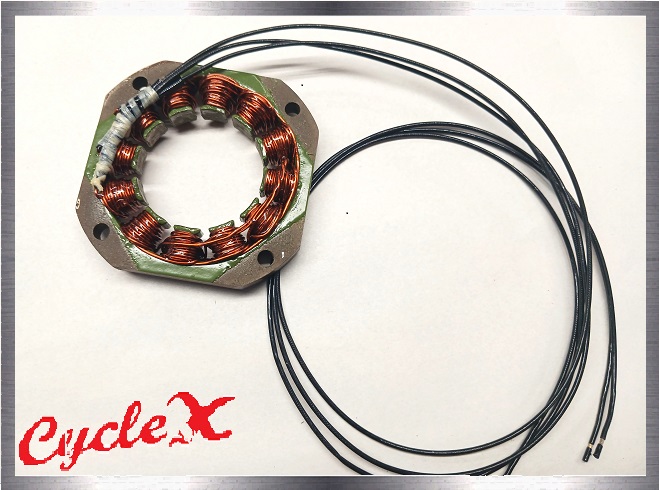

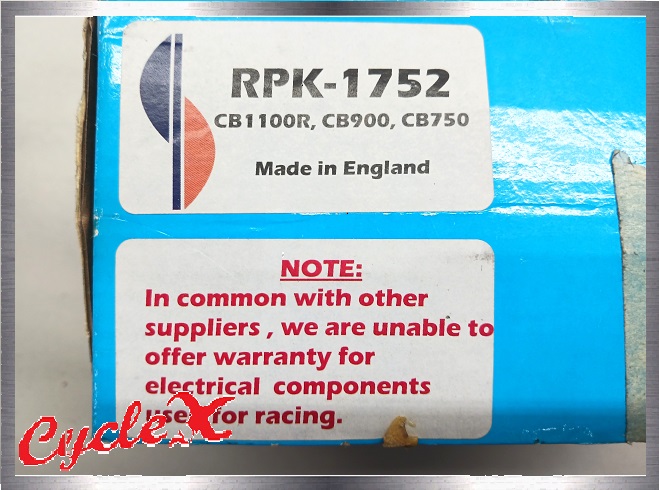

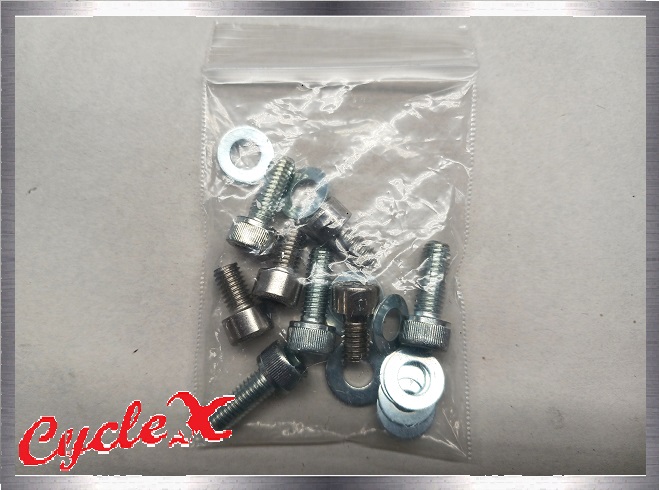

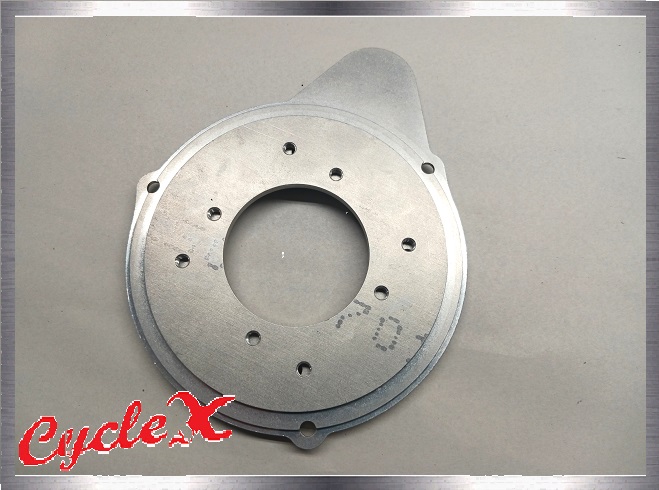

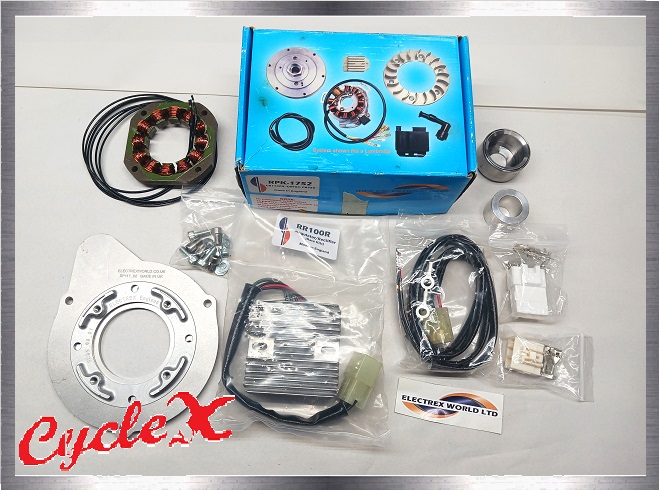

Honda cb1100R, cb900, cb750 Electrex high performance charging system

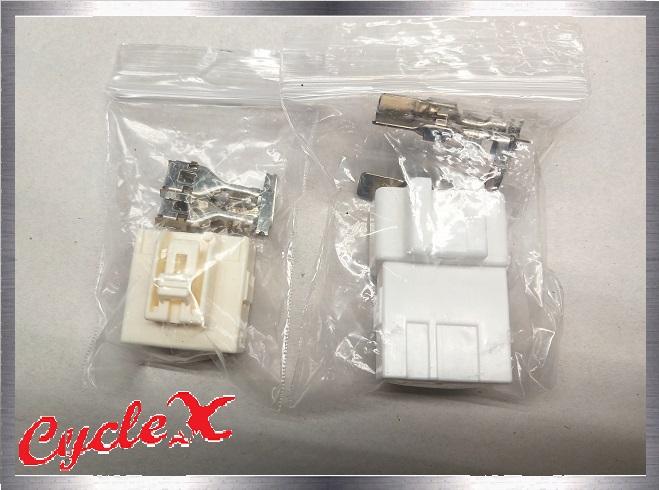

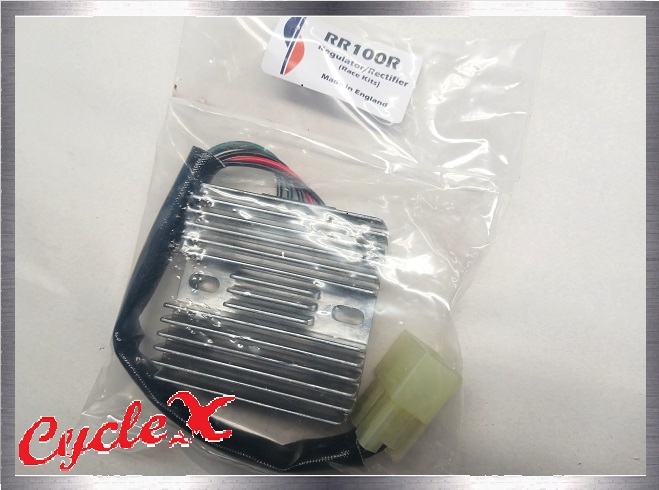

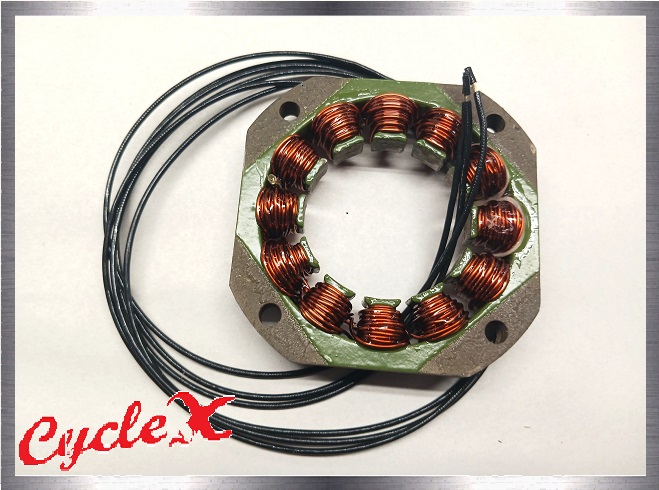

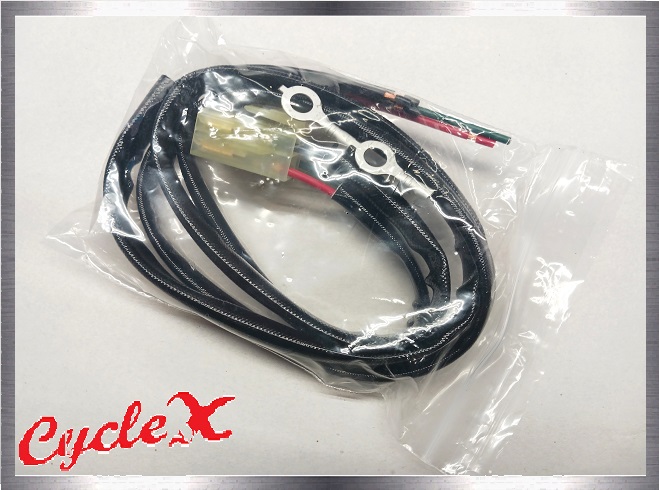

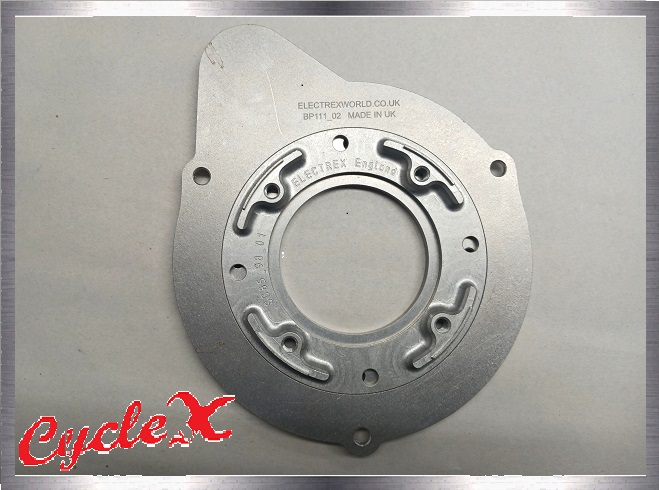

Here is a Electrex high performance kit for cb1100, cb900, cb750 high level charging kit. Please read the following discription from the Electrex company :NOTE: This kit is designed to work with original starter motor. All components specifically designed and manufactured for Race Machines. Horse power gains of 3-5hp can be expected compared to original generator set-up. The 3 phase system produces more power for a smaller size, stator is only 9mm thick but output is greater than 25amps, more than adequate for modern fuel injected race bikes +extras. Note: All factory race kits are single phase, max power about 15amps. Rotor is solid machined from alloy steel, typically weighing only 225gms, therefore with such a low rotational inertia throttle response is greatly improved. Tested up to 20,000rpm so absolute reliability is assured. Total system weight also saves between 2-4kg. Power output 25amps, Dimensions OD 92mm, thickness 9mm (plus windings). Kit includes our latest and most advanced series regulator/rectifier especially made for the race system. It enables the stator to run at a temperature of 25% less than a conventional shunt or Mosfet regulator/rectifier. The unit actually turns off at high speed depending on the load requirement, thus releasing more engine horsepower and enhancing reliability. Manufactured in the UK
#
EXO-032
$ 425.00
|
|

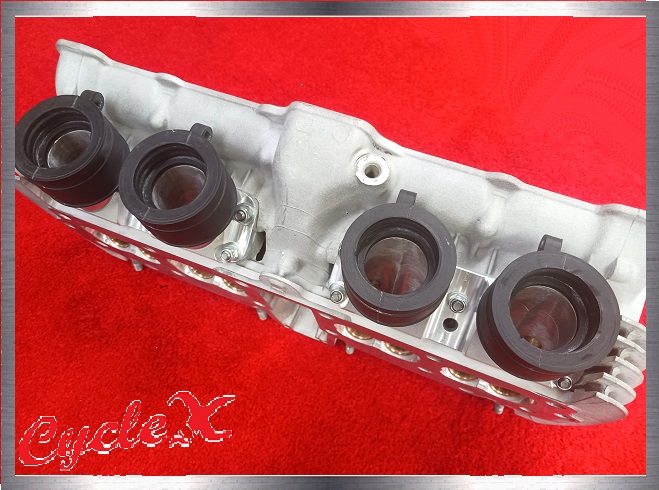

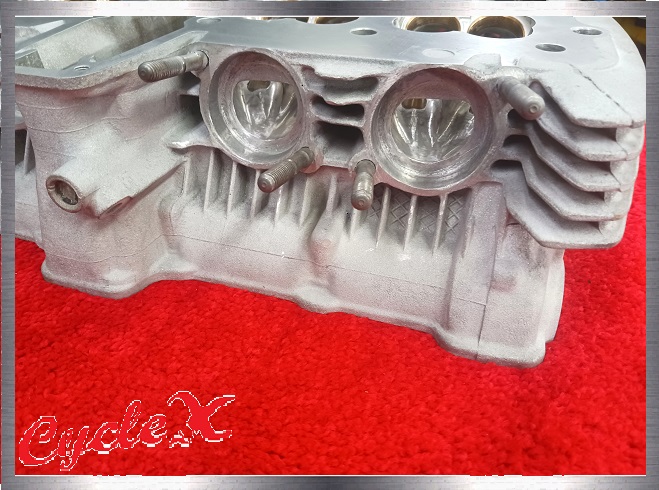

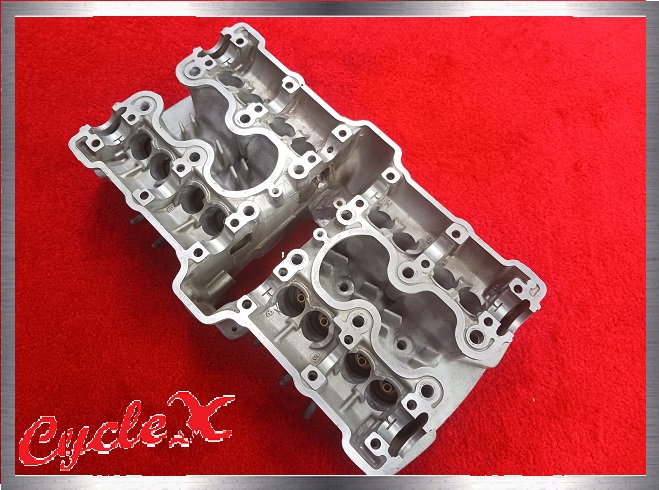

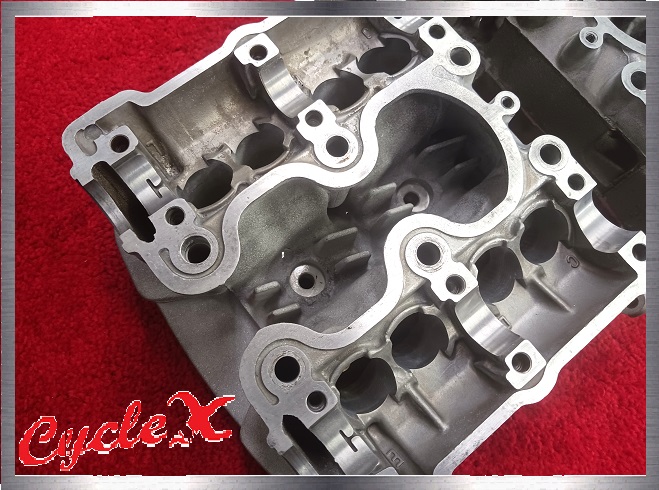

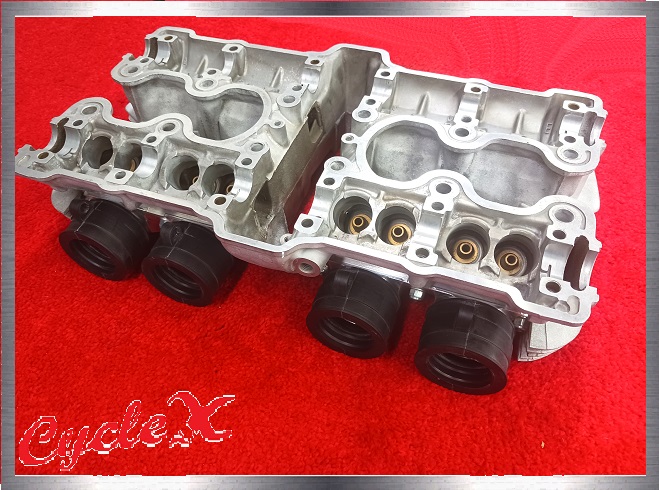

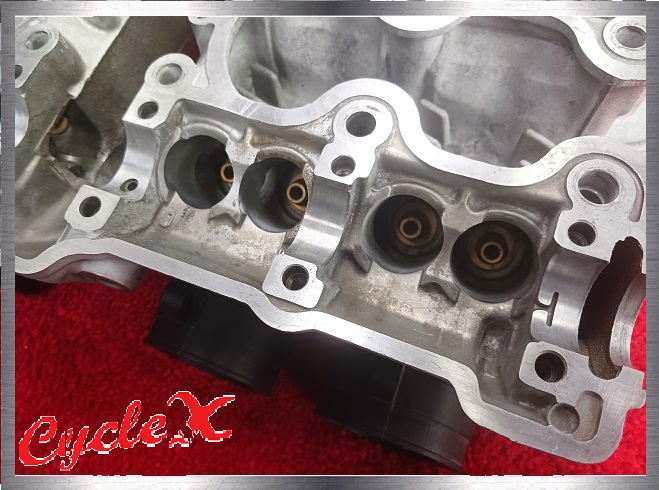

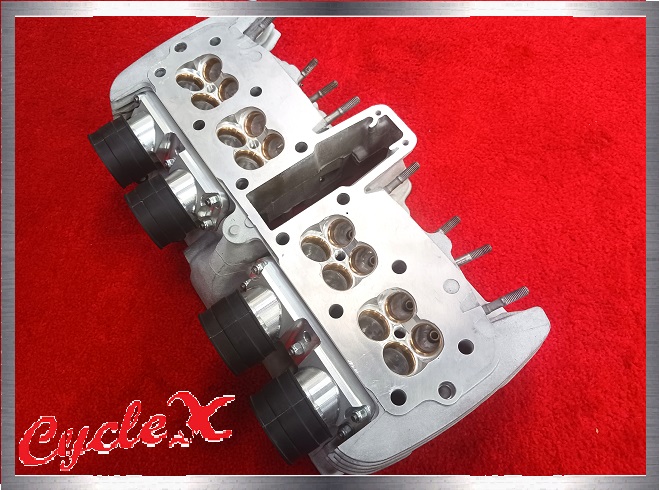

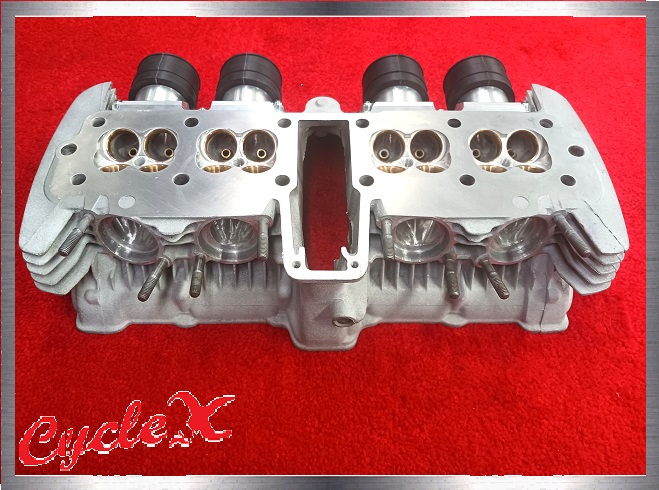

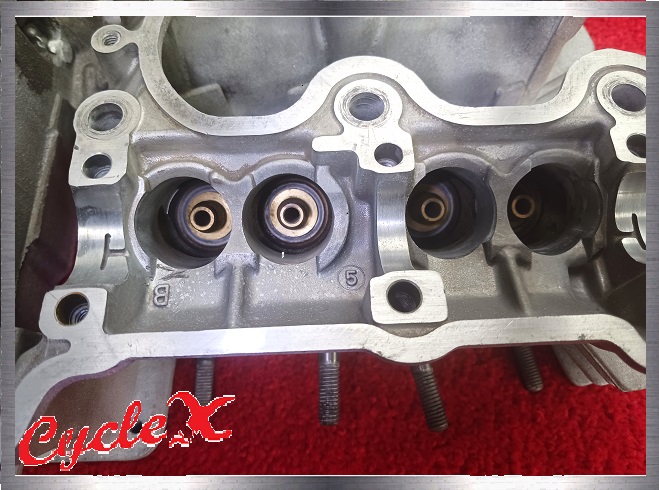

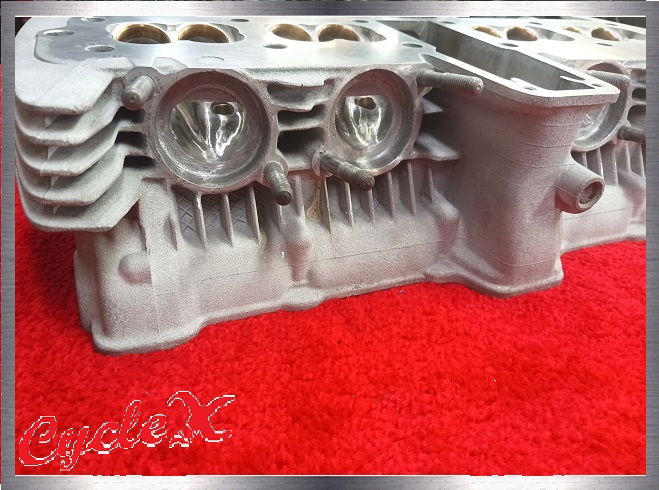

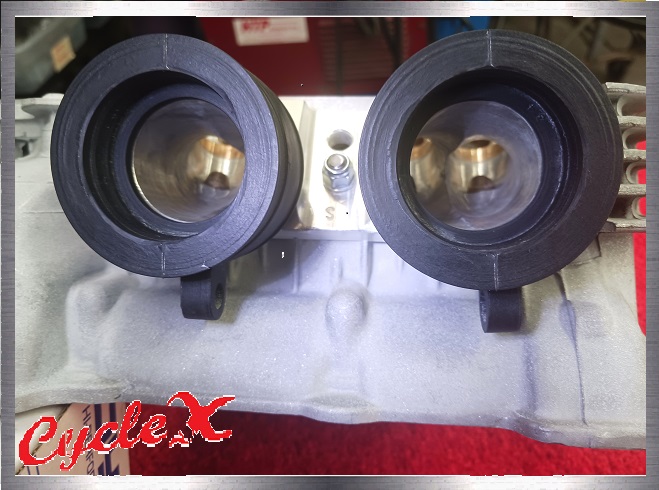

Honda cb900. cb1100 F "Superhead"
Vince & Hyde.

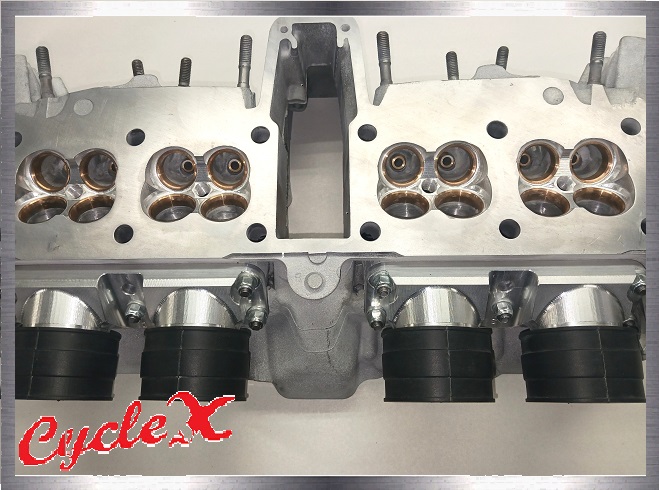

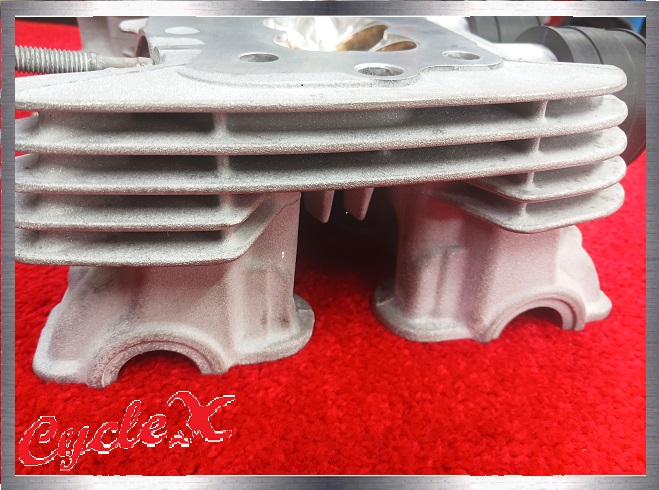

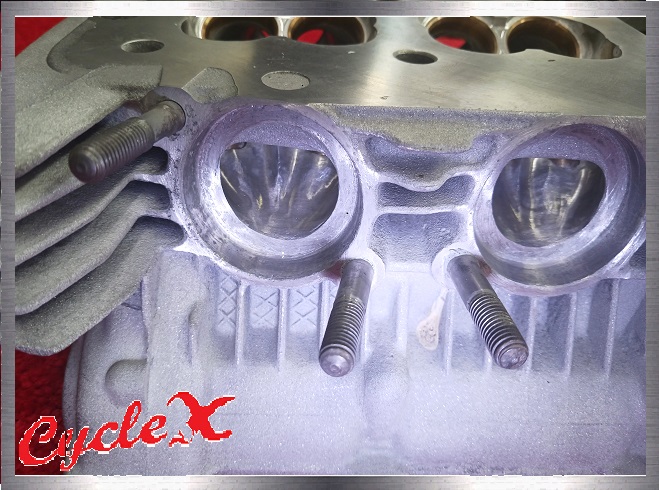

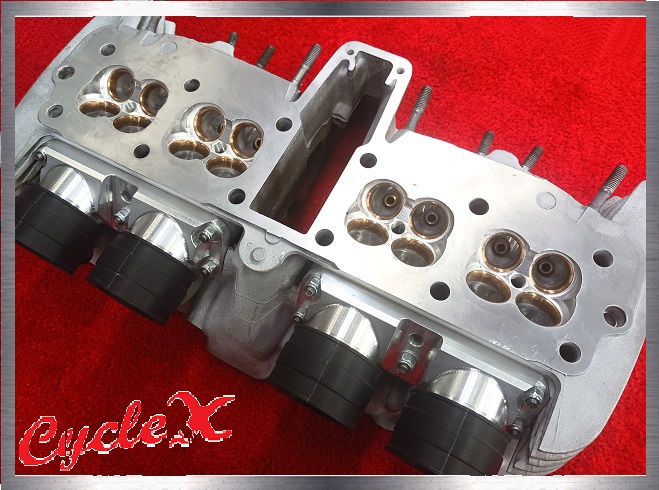

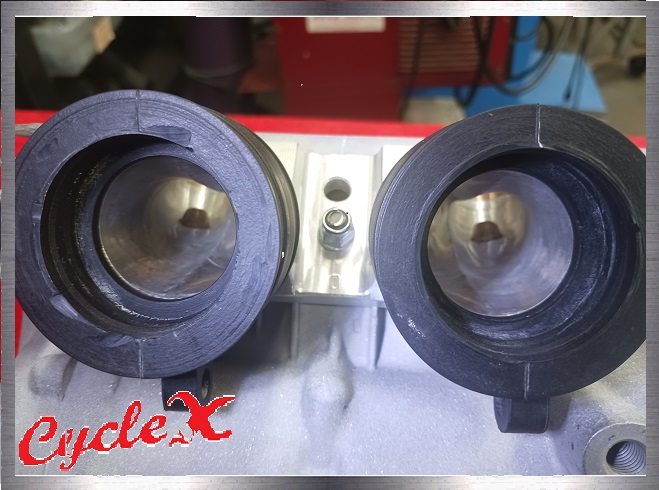

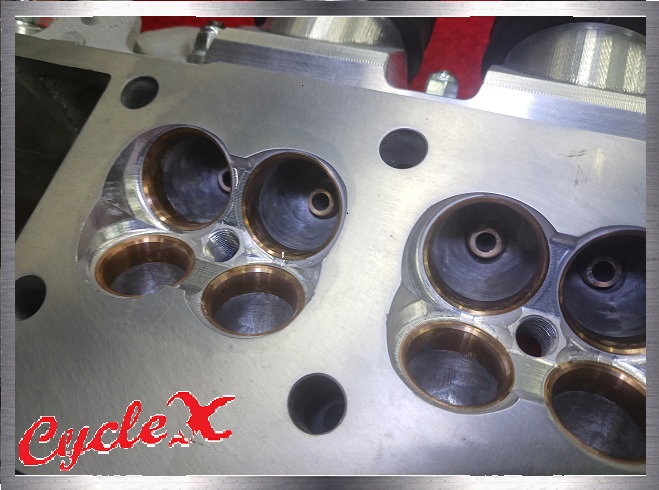

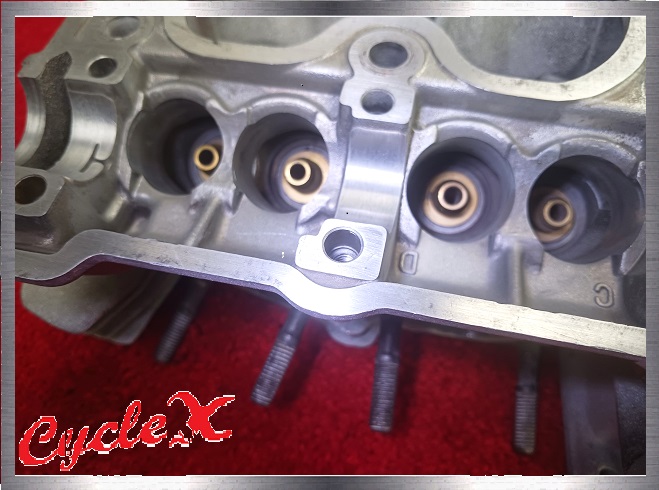

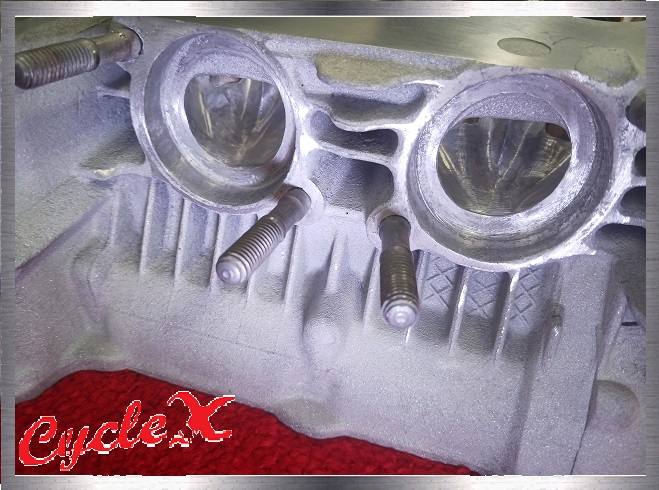

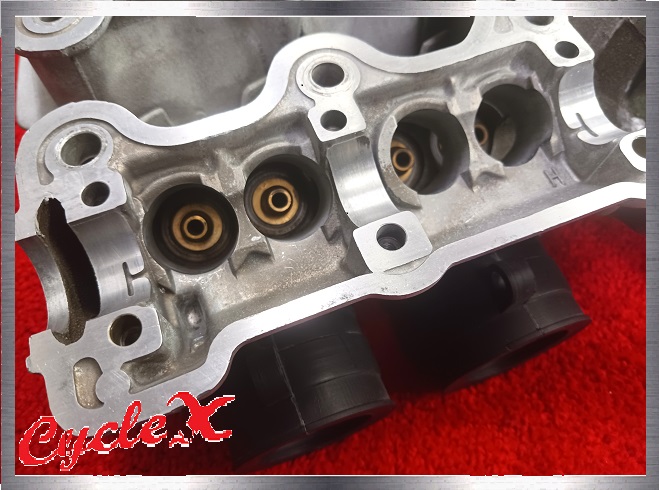

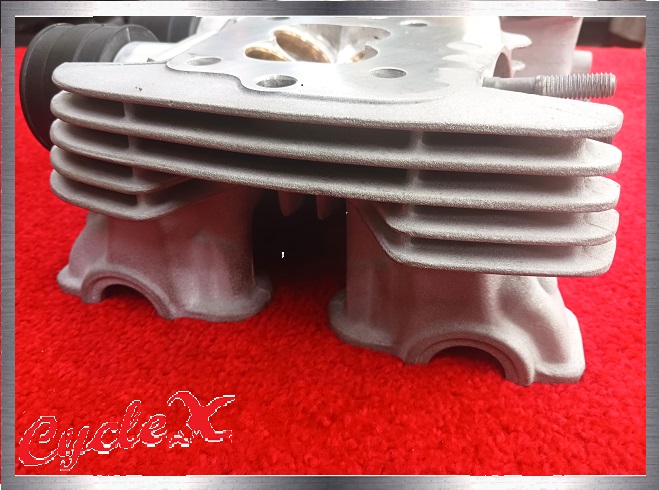

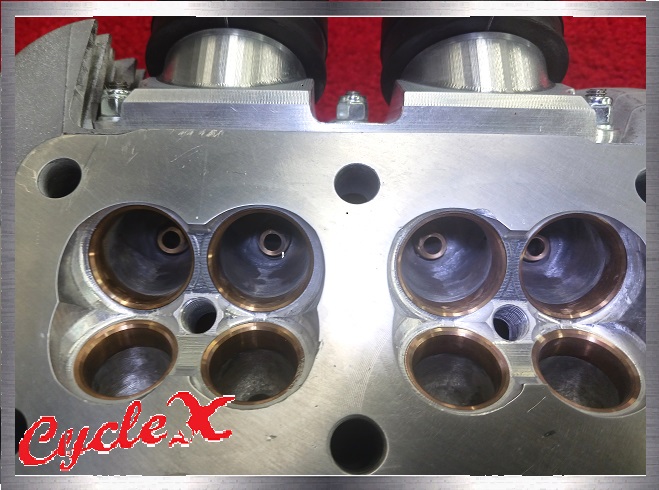

Hello DOHC fans. This might be the best cylinder head we ever seen. Very nice.Anyway, Check out the photos and original paperwork with details. Vince & Hyde paperwork with specs. The heads come complete with: · TIG-welded and CNC contoured TSCC-type combustion chambers · Valve seats, CNC shaped and angled, no need for lapping · Manganese bronze guides, pressed and reamed to 5.5 mm stock stem size · Aluminum CNC billet straight inlet manifolds, 35mm ID · Straight inlet runners, TIG welded CNC-contoured and flow tested · Straight carburetor insulators to suit CR35/FCR35 · All ancillary parts such as valves, springs, retainers, cotters, shims, followers etc are not supplied.Technical data Carburetor spacing Must be altered to suit the head's 80-139-80mm Recommended Carburetor Keihin CR35/FCR35 with 42 spigots Recommended Valves 27.5mm IN/23.0 mm EX, aftermarket SS or Ti Followers (Tappets) 28mm DIA, OEM or aftermarket shims-under version Springs Stock or aftermarket , Spark plugs STD reach 12mmSuggested camshafts Megacycle, Web 110, Web 118 with 106 LC or higher Pistons 70mm or larger, OEM 1062, Wiseco, Cruzinimage, etc Compression ratio Combustion chamber net volume is 23cc Squish volume 5cc (with 0.040" copper gasket) C.R. with 72mm flat-dome piston is 11:1 , C.R. with 72mm Wiseco piston is 12.5:1
|
|

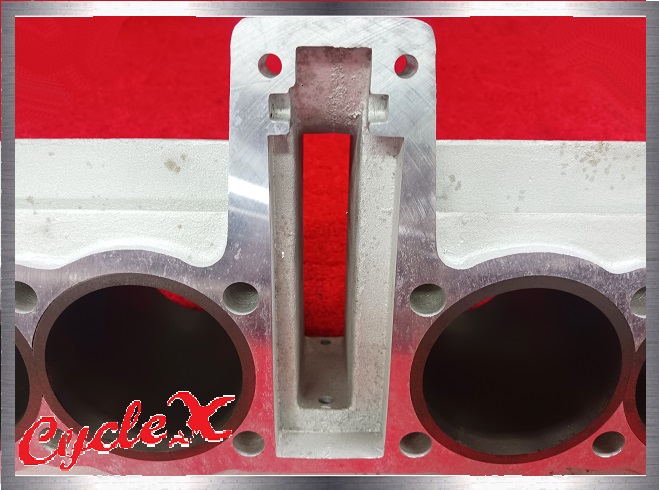

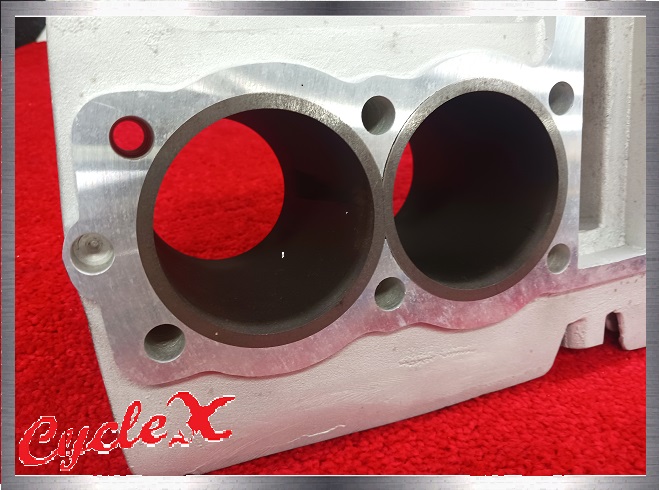

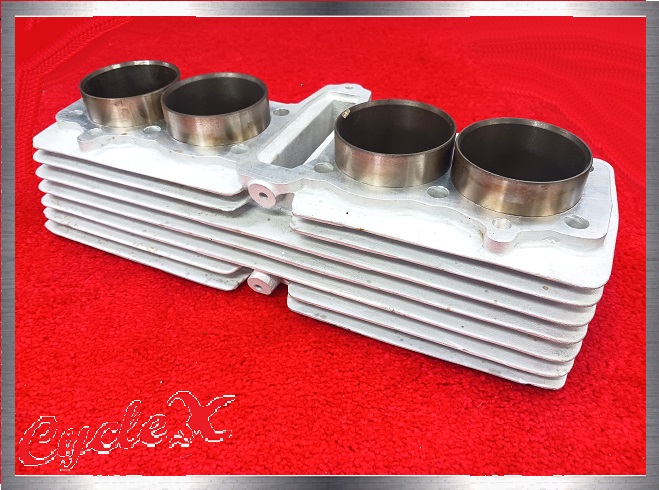

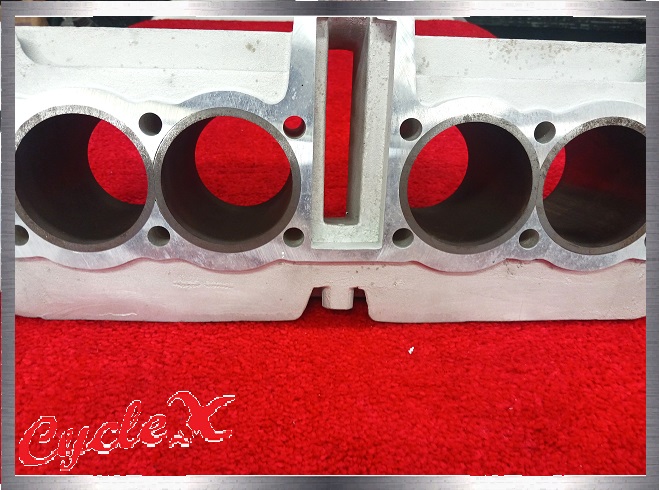

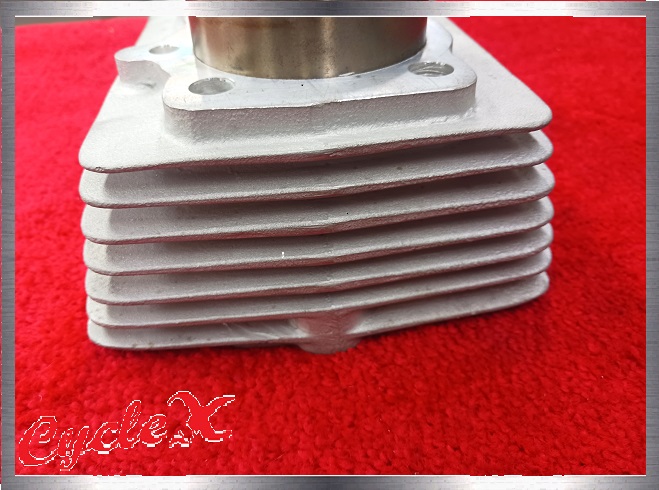

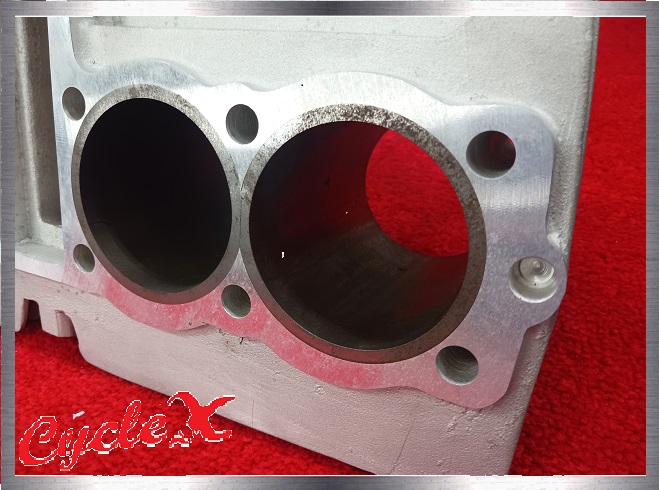

Honda cb900. Honda cb1100 F. Big-block. Big-bor e

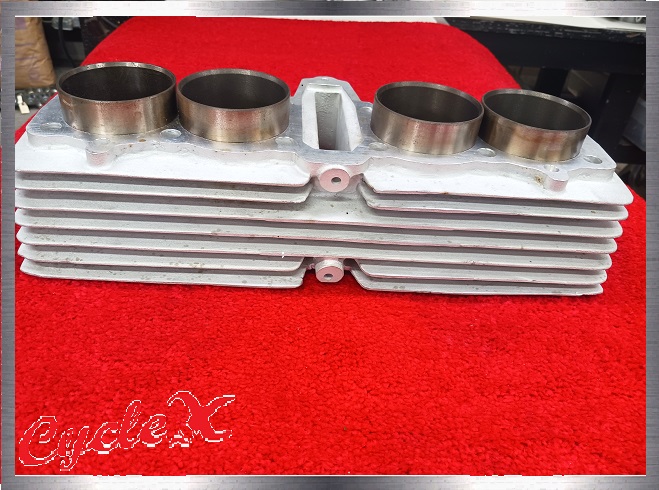

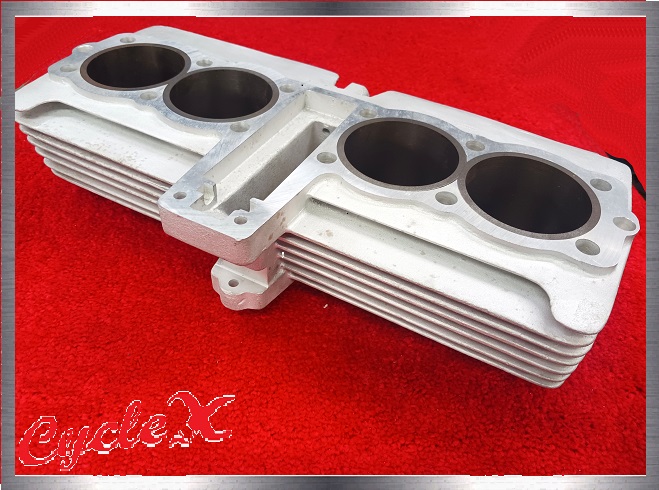

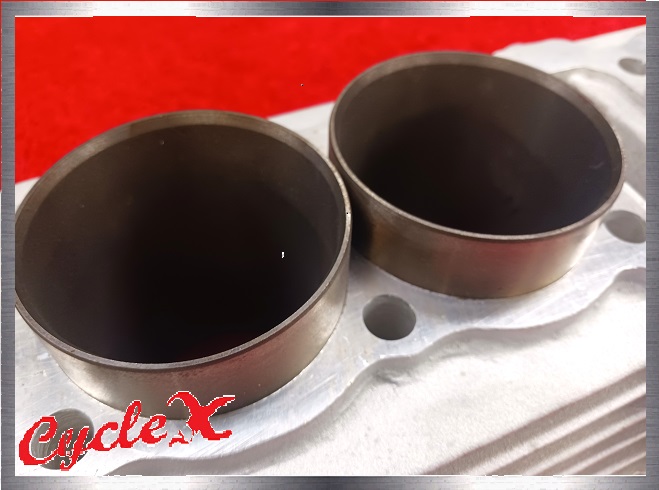

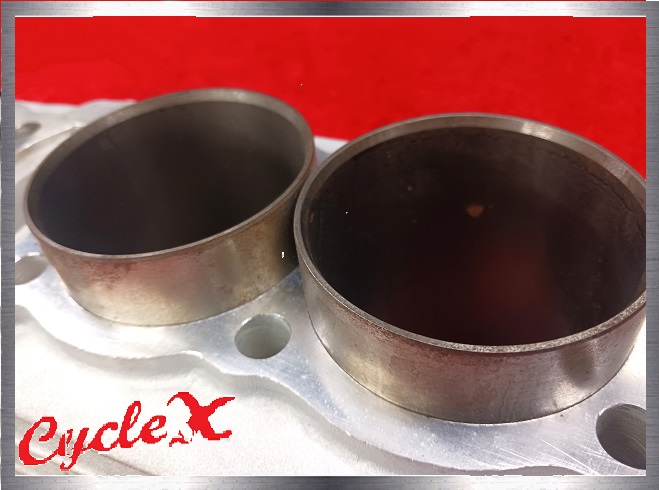

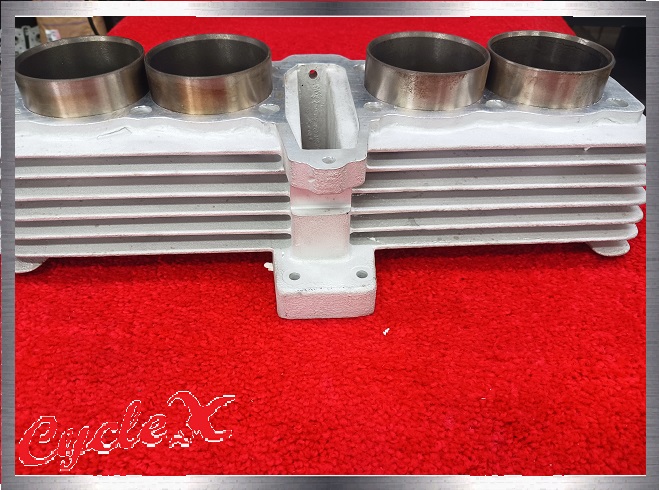

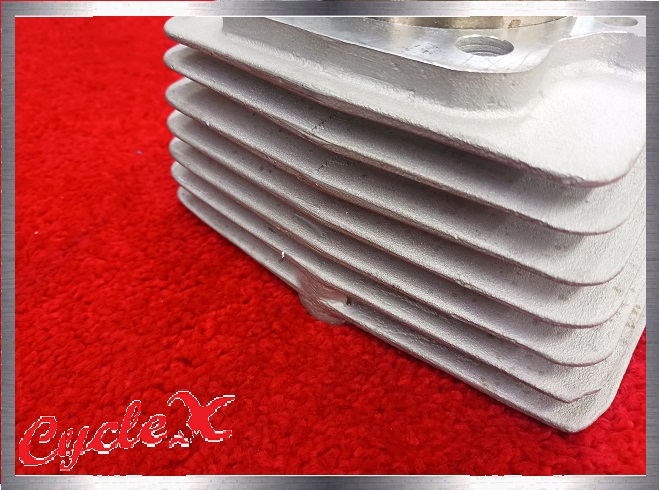

This Honda cb900 or Honda cb1100 F Super Sport is Brand new and might be the only one left in the world. Details: 73mm bore. New cast alloy block with sleeves (love cast alloy parts) # EXO-030 $ 2900.00 |
|

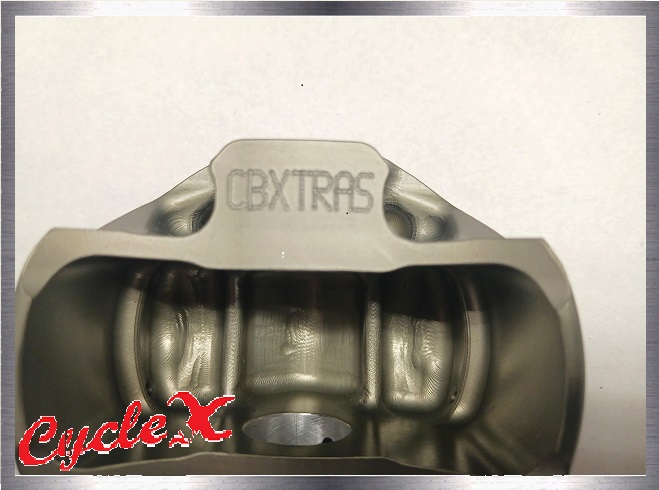

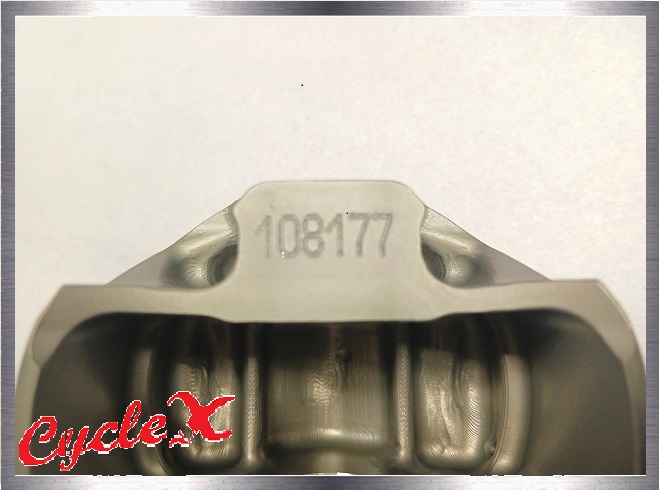

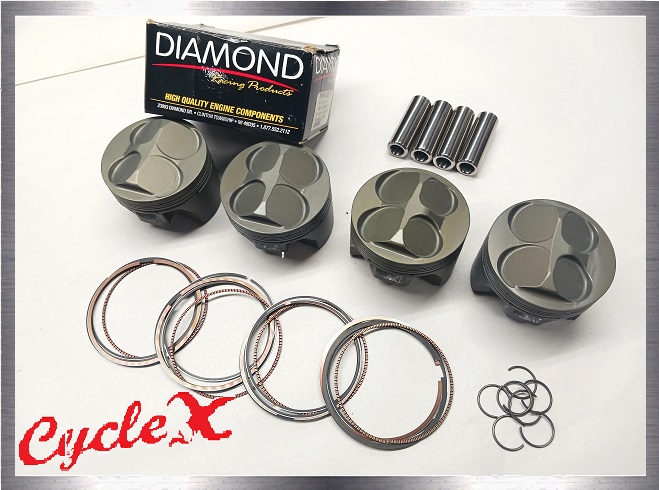

Honda cb1100 F Super Sport "Diamond" 72mm piston
set.

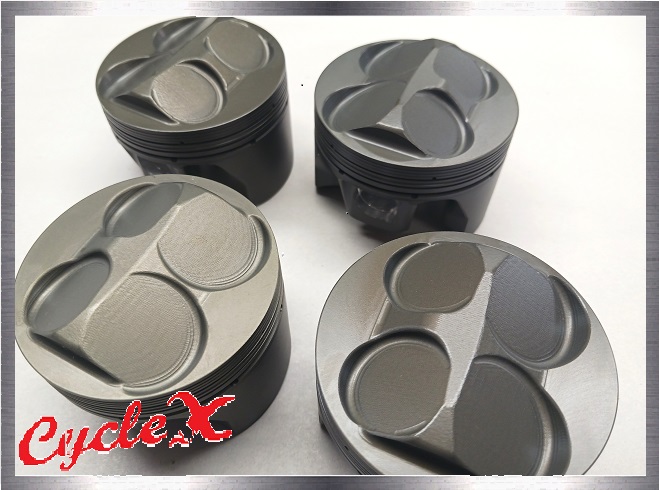

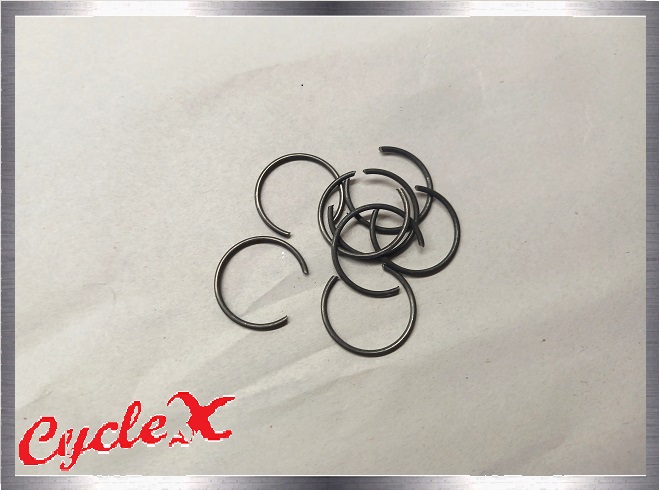

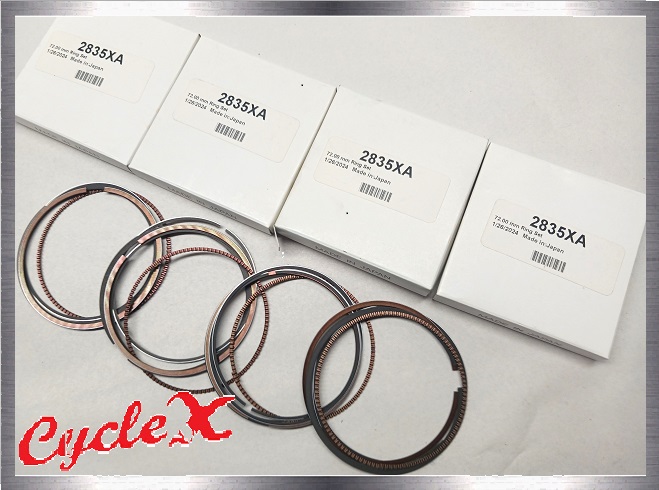

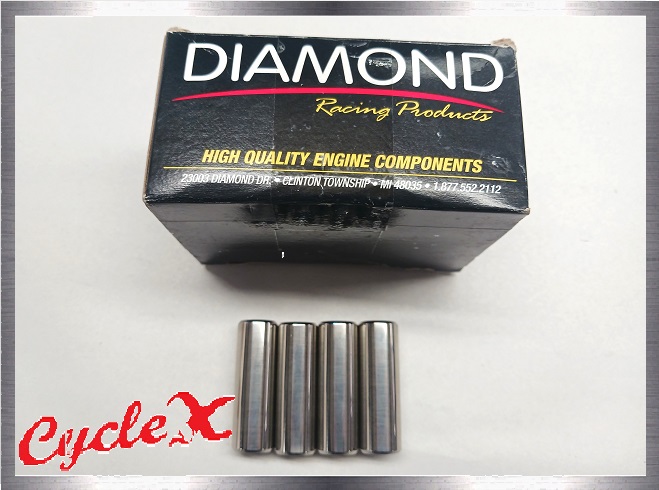

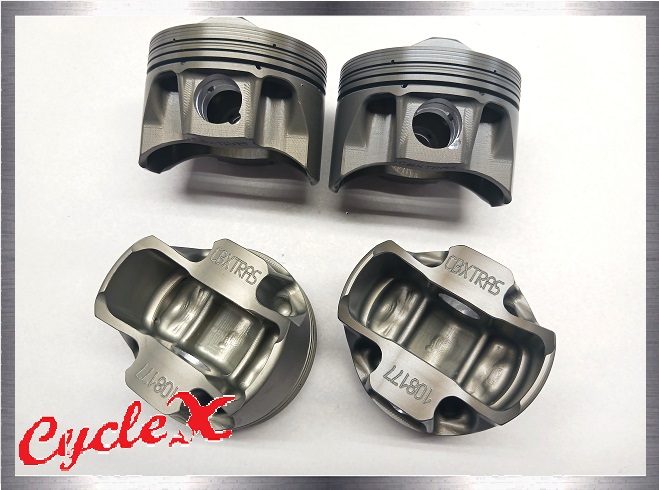

Hello Honda, cb1100 F Super Sport fans. Here is a set of Diamond 72mm pistons for a 1983 Honda cb1100 F Super Sport models. New. Complete with pistons (coated) Rings (2835XA) Wrist pins and clips.
#
EXO-033
$ 699.00
|
|

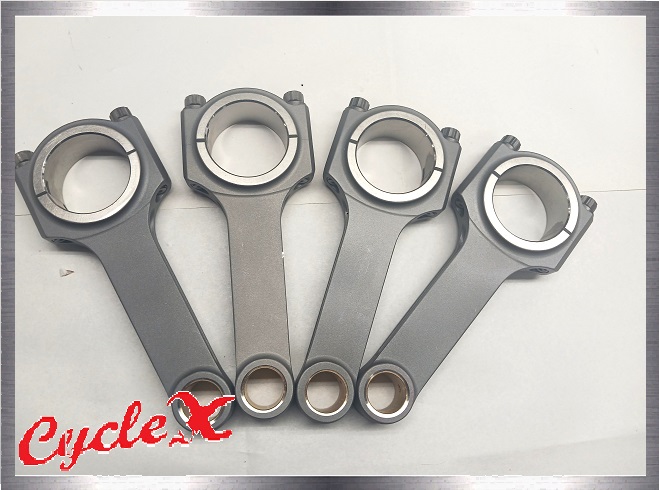

1983 Honda
cb1100 F Supersport "CARRILLO" connecting rods
NEW, DOHC Hondas
Here is a "new" set of Carrillo connecting rods that are designed for the 1983 Honda cb1100 F SuperSport's. The 17mm wrist pin areas are preferred with many racers and can be used in cb750 and cb900 models with a few changes. # EXO-018 $ 1199.00
|
|

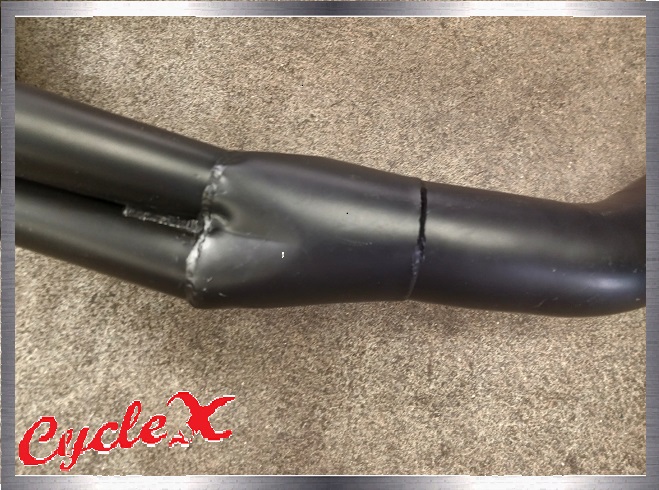

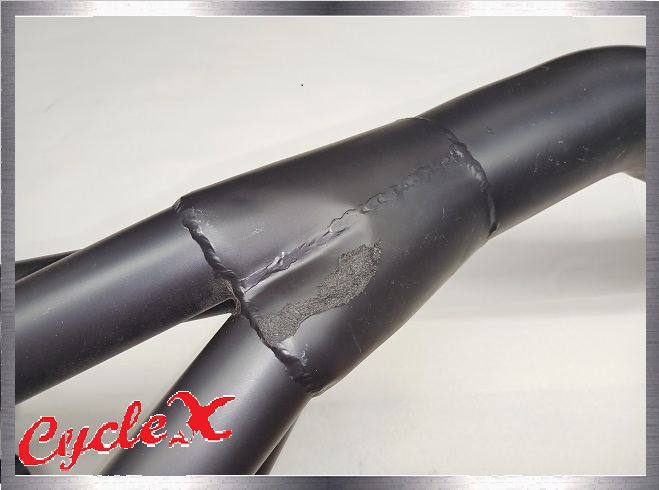

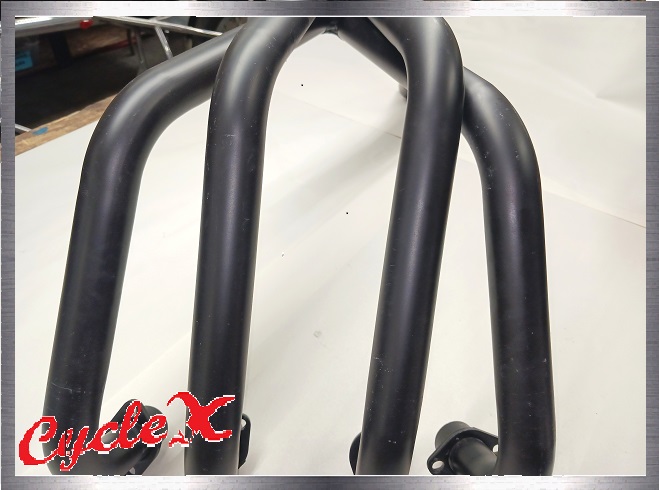

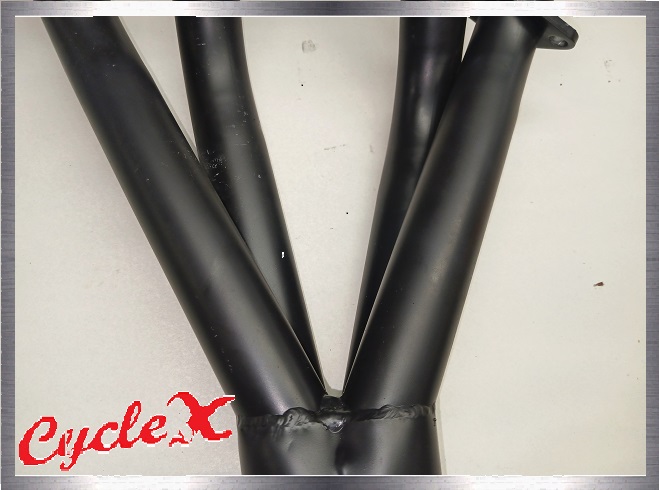

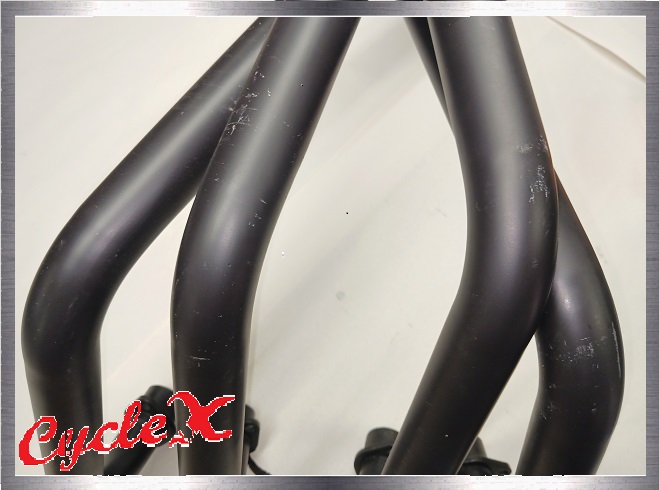

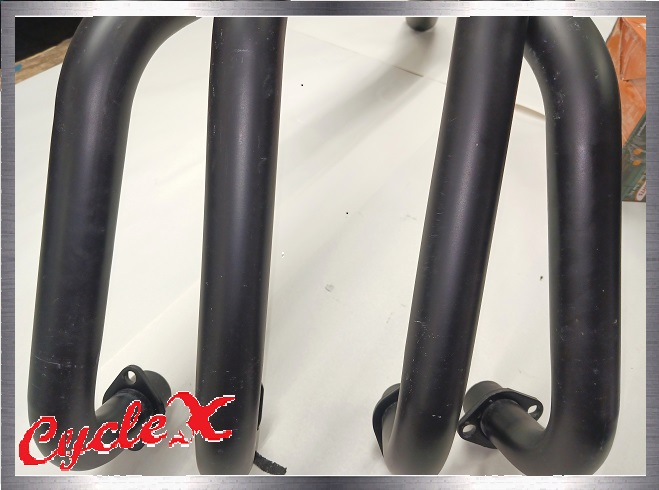

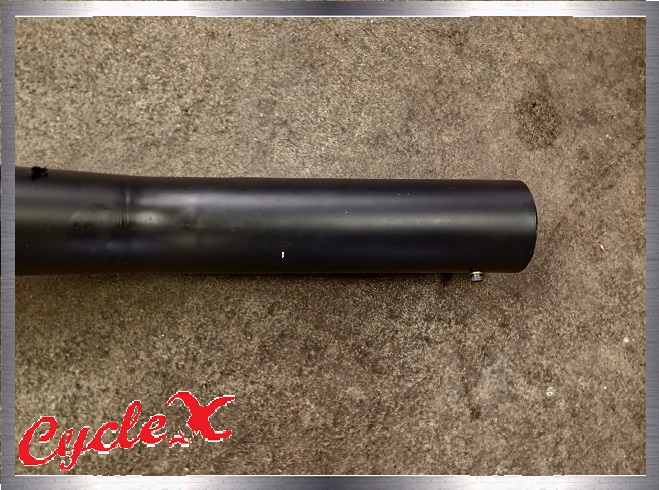

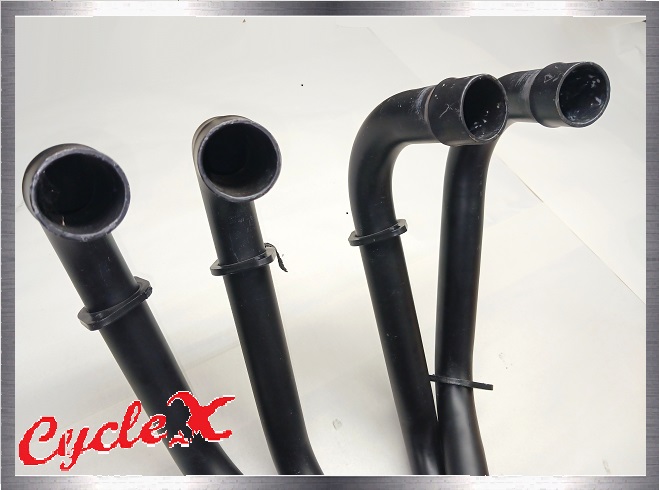

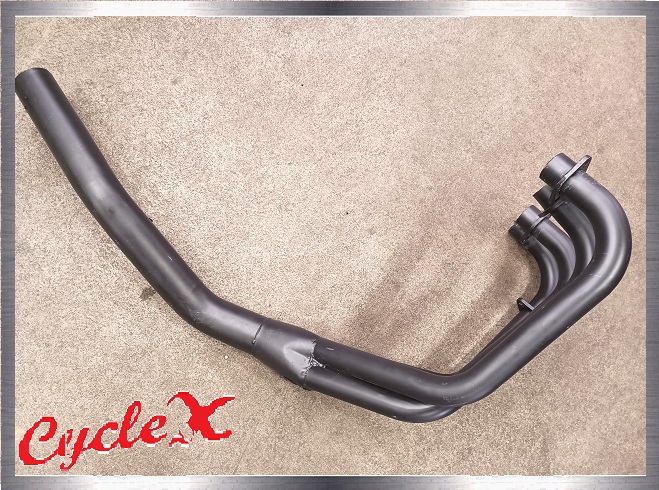

Honda cb750. cb900. cb1100F ... Yoshimura exhaust
or a duplicate?
|
|
1983 Honda cb1100 F supersport .

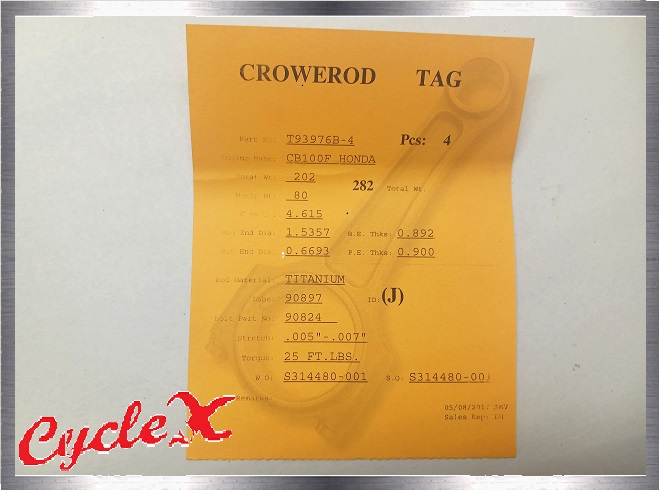

Here is a set of Titanium connecting rods for your go-fast project or just looking for the best rods available. Super light and brand new. 282 grams (stock is 374 grams) ARP bolts.Instructions included. EXO-049 $ 2450.00 |
