TOP END KIT KITS

Honda CB750 "Budget" Rev-Kit #1

- Cycle X CX-1 cam shaft.
- Cycle X / Kibblewhite performance springs.
Note:
The camshaft can be substituted ... consult with your engine builder or give a call someday.

$409.00 GK-004

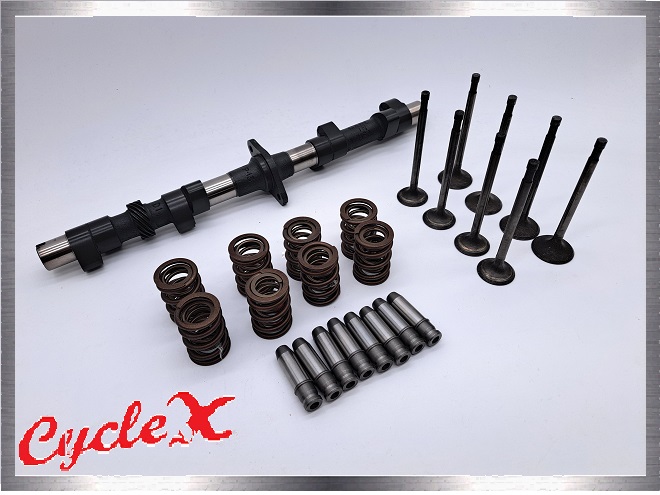

Honda CB750 "Budget" Rev-Kit #2

Freshen up your go-fast project with new parts and new performance modifications.

- Cycle X CX-1 camshaft.
- Cycle X / Kibblewhite performance springs.
- Cycle X Super flow valves. (great product)
- Cycle X cast iron valve guides (Hondas like cast iron)

The camshaft can be substituted ... consult with your engine builder or give a call someday.

$ 690.00 GK-005

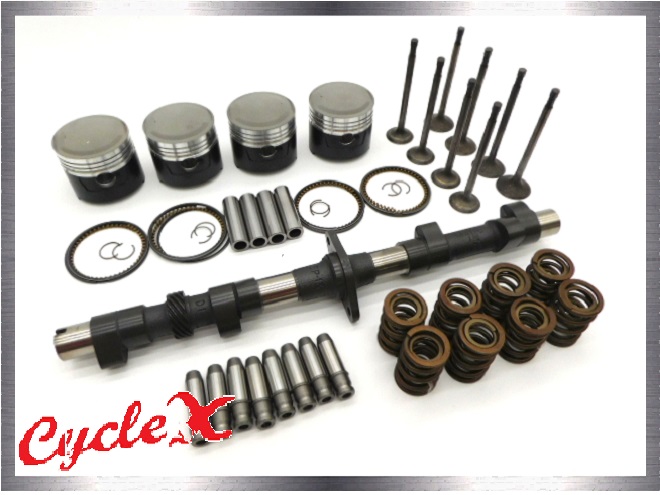

Honda CB750 "Budget" Rev-Kit #3
(With CycleX .50 Pistons)

All the good stuff in one kit!

- Cycle X CX-1 camshaft. (#1 seller with good reason .... its works great)
- Cycle X / Kibblewhite performance springs. ( You need these)
- Cycle X super flow valve set. (proven performance and reliability)
- Cycle X cast iron valve guides. ( the best valve guides on the market )
- Cycle X coated .50 piston kit. These pistons are a perfect match for our milder street, performance and touring camshafts. Every piston and camshaft selection should have a slight compression increase to work with the increases in lift and duration. These piston sets are a perfect match for longevity, reliability and surprisingly good performance while using pump gas.
Armor glide skirt coatings "just in case"
Ceramic dome coatings to repel unwanted heat .... Used in almost every "over the road" Diesel truck motor rebuild and of coarse all racing applications.

$ 1079.00 GK-006

Honda CB750 "Budget" Rev-Kit #4
( With 1mm over Wiseco AHRMA Pistons)

All the good stuff in one kit!

- Cycle X camshaft of your choice. Generously deeper and wider valve pocket pistons for a wide selection of camshaft options.
CLICK HERE TO SEE DIFFERENT CAMSHAFTS SPECS

- Cycle X High performance spring set. We have many spring sets to choose from .... But we are offering the ENV-009 performance springs with this kit.

- Cycle X super flow valve set. (proven performance and reliability)
Over size intake valves are available upon request.

- Cycle X cast iron valve guides. ( the best valve guides on the market )
.001 oversize for a perfect fit and .100 shorter on top for high-lift camshafts.

- 1MM over Wiseco Ahrma Piston Kit:

Cycle X and Wiseco have teamed up to offer state of the art forged armor glide race coated piston sets.
These 1.00mm over piston sets will be race legal in all formula vintage motorcycle road races and feature a 12.5 compression ratio. Lightest pistons in the industry for your go-fast project.

COMPRESSION RATIO REFERENCE NOTES:
Bore : 62mm
Stroke: 63mm
Cylinder Head Volume: 22cc
Gasket Thickness: 1.2mm
Deck: 8mm
Piston Dome Volume: 11.5cc
Calculated Compression Ratio: 12.5:1
151 Grams ( Bare Weight)
Tool Steel Wrist Pin: 35 Grams
3 Pc. XA Ring Set

$ 1589.00 GK-007

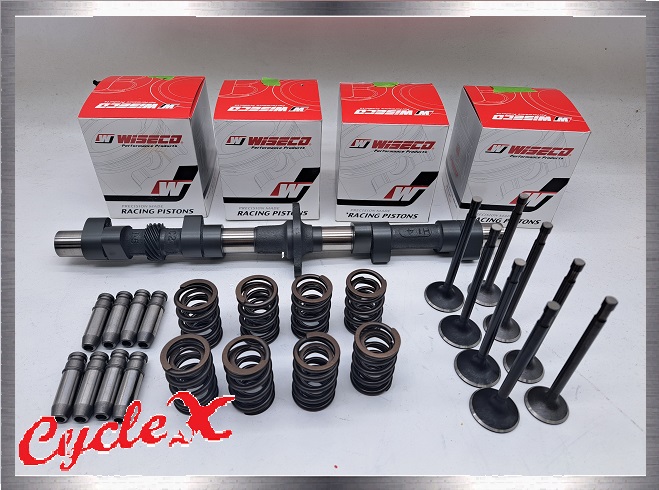

Honda CB750 "Budget" Rev-Kit # 5
( With Wiseco 65mm 836cc Pistons)

All the good stuff in one kit!

- Cycle X camshaft of your choice. Generously deeper and wider valve pocket pistons for a wide selection of camshaft options.
Recommended camshaft: CX-1, CX-2, SX-1, KHD-CX-1, CX-3 and possibly a CX-7
CLICK HERE TO SEE DIFFERENT CAMSHAFTS SPECS

Wiseco 836cc piston kits have been around for decades and proven to be the "go-to" piston kit for maximum oversize before resleeving. Armor glide race coated piston skirts for additional insurance and a happy motor.

$ 1264.00 GK-008

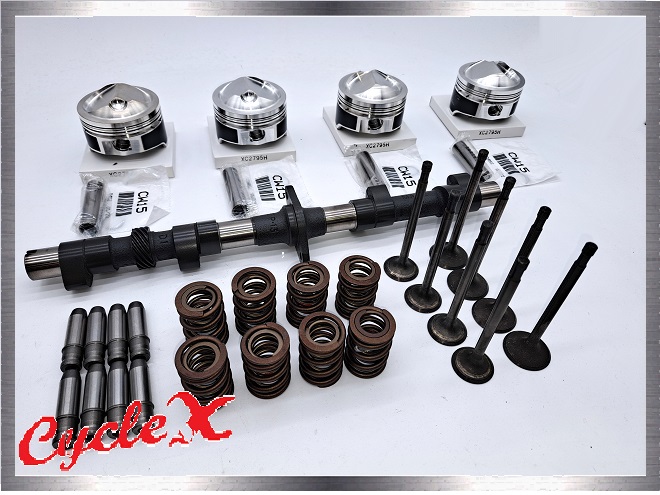

Honda CB750 "Budget" Rev-Kit # 6
( With Full Race 71mm Pistons)

All the good stuff in one kit!

- Cycle X camshaft of your choice. Generously deeper and wider valve pocket pistons for a wide selection of camshaft options.
Recommended camshafts: CX-7, CX-10, CX-11 or any other race camshaft with similar spec's.
CLICK HERE TO SEE DIFFERENT CAMSHAFTS SPECS

- Cycle X High performance spring set. We have many spring sets to choose from .... But we are offering the ENV-009 performance springs. Bee-hive springs are also a good choice.

- Cycle X super flow valve set. (proven performance and reliability)
Over size intake valves are available upon request. (oversize valves and full porting recommended)

- Cycle X cast iron valve guides. ( the best valve guides on the market )
.001 oversize for a perfect fit and .100 shorter on top for high-lift camshafts.

- 71MM 1000cc Wiseco Piston Kit: ( Max compression. 0.9255 comp. Ht.)
Specs:
CycleX / Wiseco High dome.
Clearance 0.00190
Bore: 2.7952
CW15 clips
2795XC rings.

These pistons are being used on some of the fastest 1000cc Honda's around.
Let us know if you need help planning your go-fast build.

$ 1514.00 GK-009

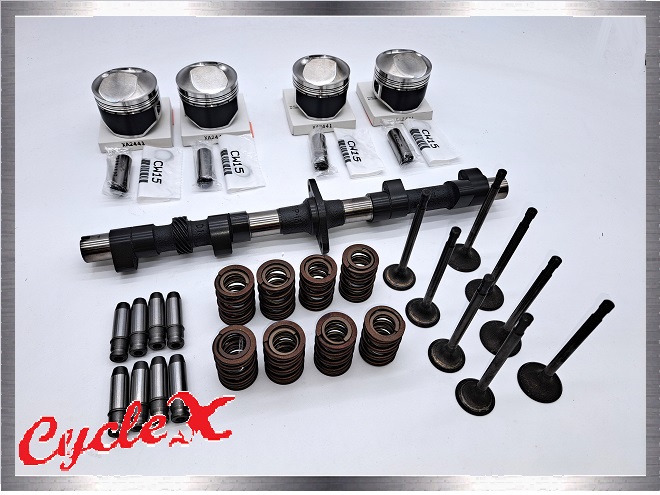

Honda CB750 "Budget" Rev-Kit # 7
( With 70mm 970cc Sleeves & Pistons)

All the good stuff in one kit!

- Cycle X camshaft of your choice. Generously deeper and wider valve pocket pistons for a wide selection of camshaft options.
Recommended camshafts: CX-3 SX-1,CX-7, CX-10, CX-11 or any other race camshaft with similar spec's.
CLICK HERE TO SEE DIFFERENT CAMSHAFTS SPECS

- Cycle X High performance spring set. We have many spring sets to choose from .... But we are offering the ENV-009 performance springs. Bee-hive springs are also a good choice.

- Cycle X super flow valve set. (proven performance and reliability)
Over size intake valves are available upon request.

- Cycle X cast iron valve guides. ( the best valve guides on the market )
.001 oversize for a perfect fit and .100 shorter on top for high-lift camshafts.

- 70MM 970cc Wiseco Piston Kit:
CycleX / Wiseco 70mm 970cc (10.5 to 1) ..... Depends on milling gasket thickness and such.
Clearnace 0.00190
Comp. Ht. 0.9255
Bore 2.7560
CW-15
2756XC rings.

$ 1414.00 GK-010

It is the sole and exclusive responsibility of the purchaser to determine the suitability of any part, product or work for his or her use.
The purchaser shall assume all legal, personal injury risk and liability and all other obligations, duties and risks therewith. There is no warranty on High Performance products.
