SLEEVES, RINGS & CIRCLIPS

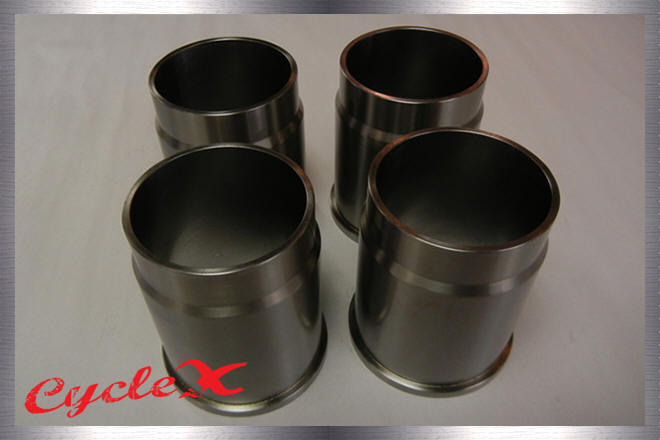

Cylinder Sleeves for 836, 849 & 900cc Bore Kits

Even though 836 big bore kits have been around for years, some people believe that the wall thickness is thin. So, many people install these sleeves to regain wall thickness. These sleeves will be needed when increasing bore sizes larger than 65mm (836cc) up to 67.5mm. Outside diam. is 2.916 inches (74mm) The bottom of the sleeve is tapered down 2.752 (69.9mm) to allow the sleeves to fit inside of the upper case without bore the upper case larger. Inside diameter is 2.522 (64.07mm)

These sleeves have been the choice of engine builders for decades because of their dense long lasting cast iron materials. Most machinists can hear the difference when boring the cylinders and feel the toughness/denseness when honing them.

World class, race proven, and a price that is impossible to beat.

Note: Sometimes the upper cases have casting flash or casting protrusions which will need to be removed.

Note: Cylinder block will need to be bored for these sleeves.

Cycle X cast iron sleeves are the best in the industry.

836-849-900-SLEEVES     $219.00     (set of 4)
CALL OR EMAIL TO ORDER

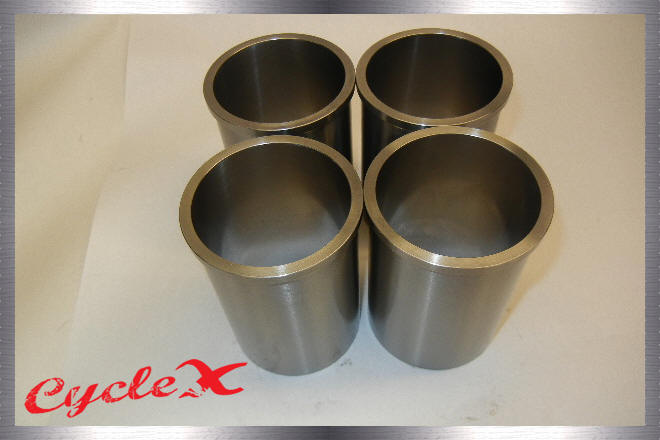

970, 1000 & Up Big Bore Sleeves
Best in the industry!
Sleeves for 970, 1000 and above. 69mm I.D., 74.5mm O.D.

These sleeves have been the choice of engine builders for decades because of their dense long lasting cast iron materials.

Most machinists can hear the difference when boring the cylinders and feel the toughness/denseness when honing them.

World class, race proven and a price that is impossible to beat.

Note: Cylinder block and upper case boring required.

Cycle X cast iron sleeves are the best in the industry.

# BIGBORE-SLEEVES     $219.00
CALL OR EMAIL TO ORDER

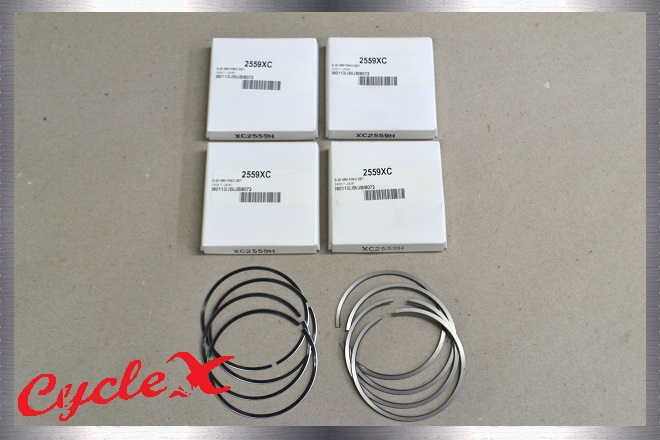

Wiseco and JE Piston Ring Sets (65mm, 836cc)
Total Seal 2nd Compression Rings

We are told all ring sets are held up on a boat off shore with no due date in sight.
Here are some 2559XC rings that fit Wiseco and JE 65mm (836cc) pistons.
These 2559XC ring sets combined with total seal 2nd compression rings are the combination that many high level engine builders use.
Note: If your Wiseco/JE pistons are super old, consult with Wiseco/JE for fitment questions.

ENP-014     $159.00  (per set)

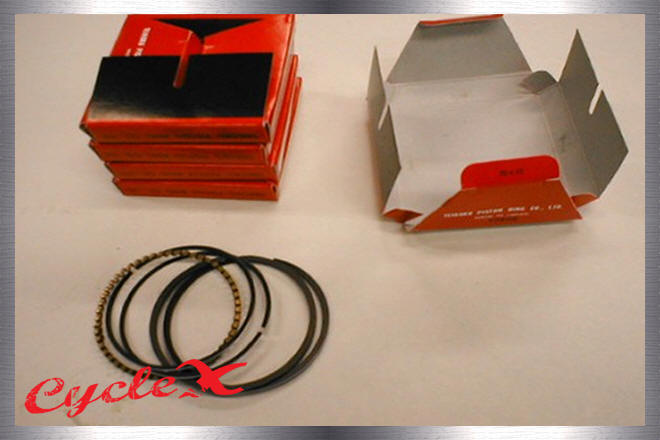

Honda 750 Standard Ring Set

1969-1976. Change your rings while your motor is apart.

ENP-013     $99.95  (per set)

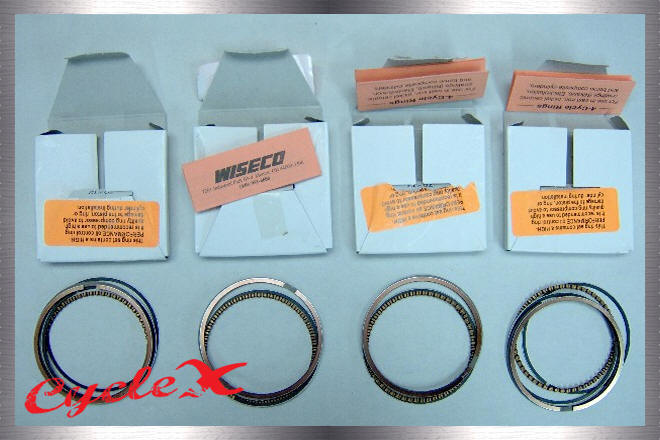

836cc Ring Set (Wiseco)

Replacement rings for your 836 kit.
Question: If we take our motor apart, can we use the rings again?  Answer: No

ENP-012     $159.95 (per set)

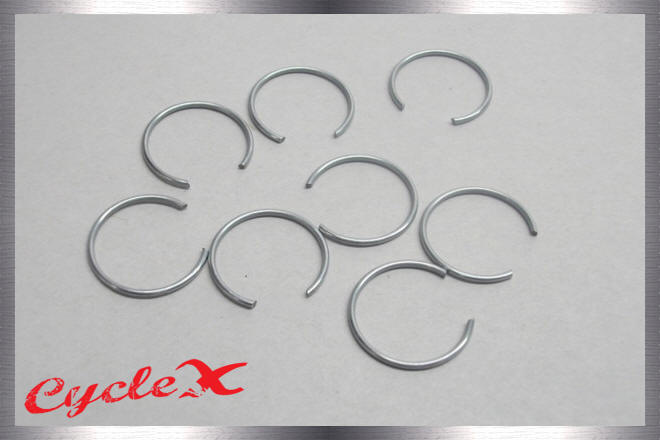

Piston Circlips

 #CIRCLIPS     $10.95     (Set of 8)




If you're in need of tech help, refer to our pistons tech tips page.
