906CC PISTONS PAGE

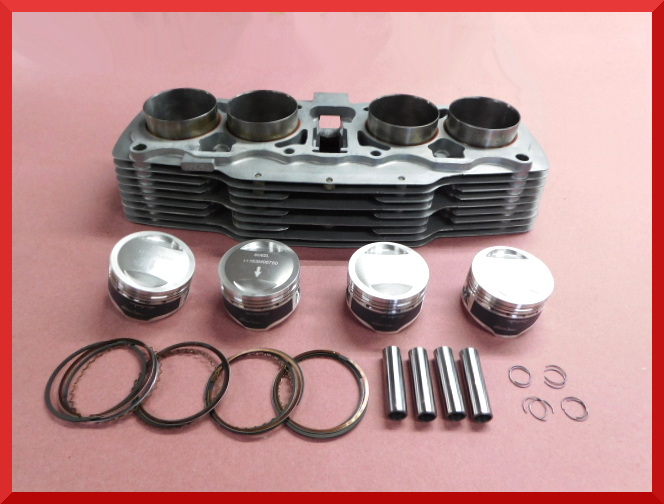

67.5 Piston And Cylinder Combo.

Includes:
10.25 to 1 Wiseco armor glide piston set.
XC ring sets for easy installation.
CycleX big-bore sleeves ... Tapered to fit in stock upper cases.
157 grams pistons (bare weight)

Machine work:
Glass beaded.
Cylinder block re-sleeved to larger big-bore sleeves.
Bored and honed.
Surfaced (both sides) to .026 undersize.
(6) 12mm long Heli-coils.
Hard blocked between 1&2 and 3&4 cylinders.
Oil feed "O" ring modification. Keeps "O" ring from shifting or moving.

Note:
This machine work was performed on the preferred early cylinder.
Only 1 in stock.
# 906-CMB     $ 1425.00

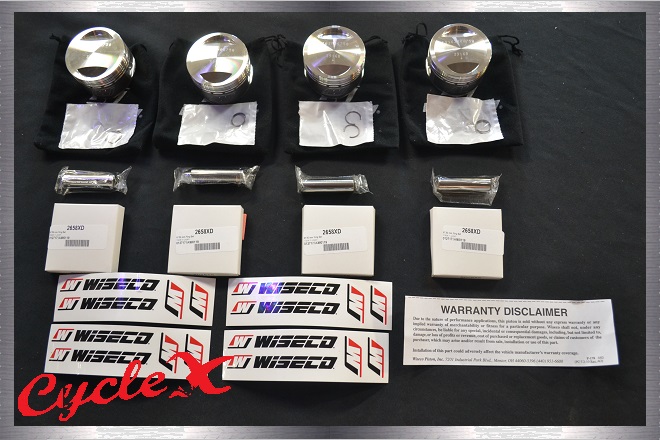

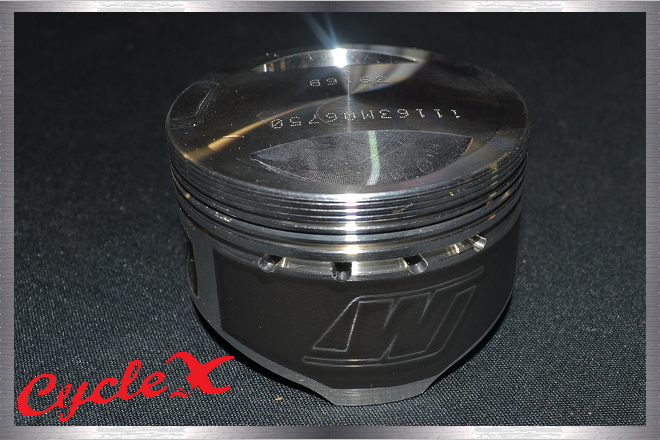

Cycle X 906cc Pistons (Armor Glide Coated)
67.50 Wiseco and Cycle X designed pistons (forged)

155 grams per piston (4 grams lighter than a stock piston-bare piston weight). Generous valve relief for big cams and big valves.
10.25:1 compression ratio.
Head gasket, Rings, Circlips, Wrist Pins

ENP-915     $659.95

MORE COMING SOON!

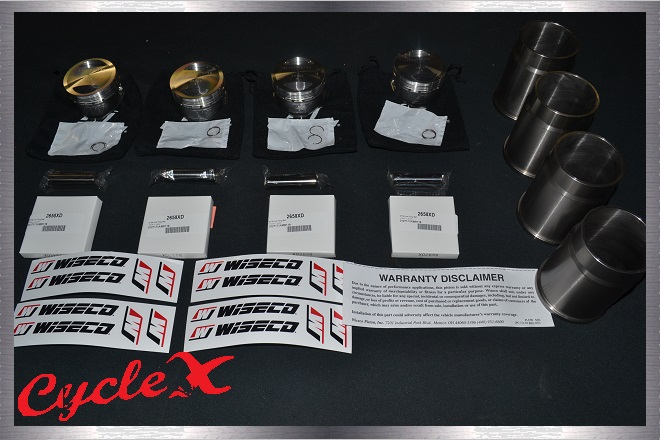

Cycle X 906cc Kit With Sleeves  (Armor Glide Coated)
67.50 Wiseco & Cycle X Designed Pistons (forged)

155 grams per piston (4 grams lighter than a stock piston-bare piston weight). Sleeves are world class quality and designed to fit in the upper case without boring.
Generous valve relief for big cams and big valves.
10.25:1 compression ratio. Sleeves set, Head gasket, Rings, Circlips & Wrist pins.
Note: Our sleeve design allows "O" rings to be used on the base side of the sleeves (like OEM) "O" are included in the kit.


ENP-915-KIT     $849.95
MORE COMING SOON!
