Harley Twin Carb Systems Page
Retro
+ Petro
=
Cool
Kit # 1
Kit Includes:

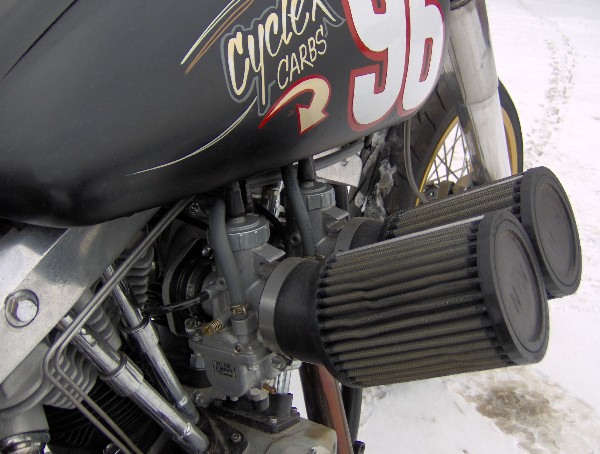

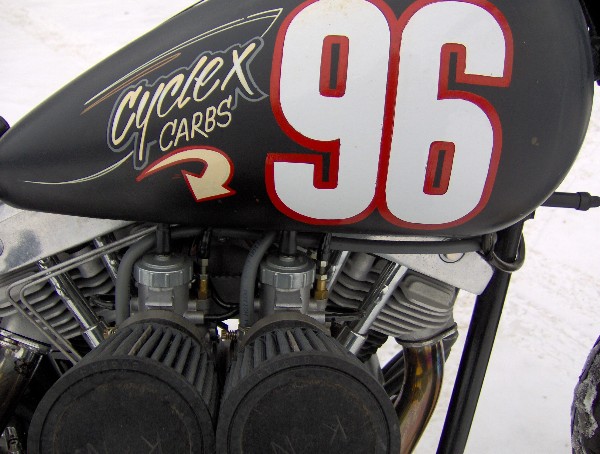

(2) 30mm Mikuni carburetors ( pre jetted )
(2) K&N air filters
Motion pro throttle cable ( 47 inches long )
Chrome 1 inch throttle assembly
Gasket
Fuel line "T" fitting
Special alloy manifold, mounting rubbers and chrome mounting bolts
$ 499.00
# HDC-101
Kit # 2
Kit #2 is the same as above but has flat retro air filters.
These super cool air filters will allow clearance for your legs if forward
controls are used.
$ 499.00
# HDC-202
Kit # 3
Kit # 3 is the same as above with V stacks
instead of air filters. This kit will save you money and some
creative people like to make their own air filter arrangements.
$
429.00
# HDC-303
Description Of Components:
Mikuni carburetors:
Mikuni carburetors have infinite adjustability. We have been able to zero in on
the amount of fuel delivery in all the circuits.
They also allow us to regulate the amount of incoming air to be mixed with the
fuel. With this type of adjustability, fuel mileage and performance are things
that some carburetor kits lack. Some carburetor kits simply have an intermediate
jet, main jet and an idle mixture screw which limits adjustability when
transitioning from low to higher speeds. Oh yeah, no more sucking air around
worn throttle shafts.
Special Alloy Manifolds:
We cannot take credit for designing these alloy manifolds. The flow characteristics
and design have been traced back to the Jerry Branch neck of the
woods.
The alloy manifolds are the same design used by many bike builders back in the
day. This design has been used by Arlen Ness and others .

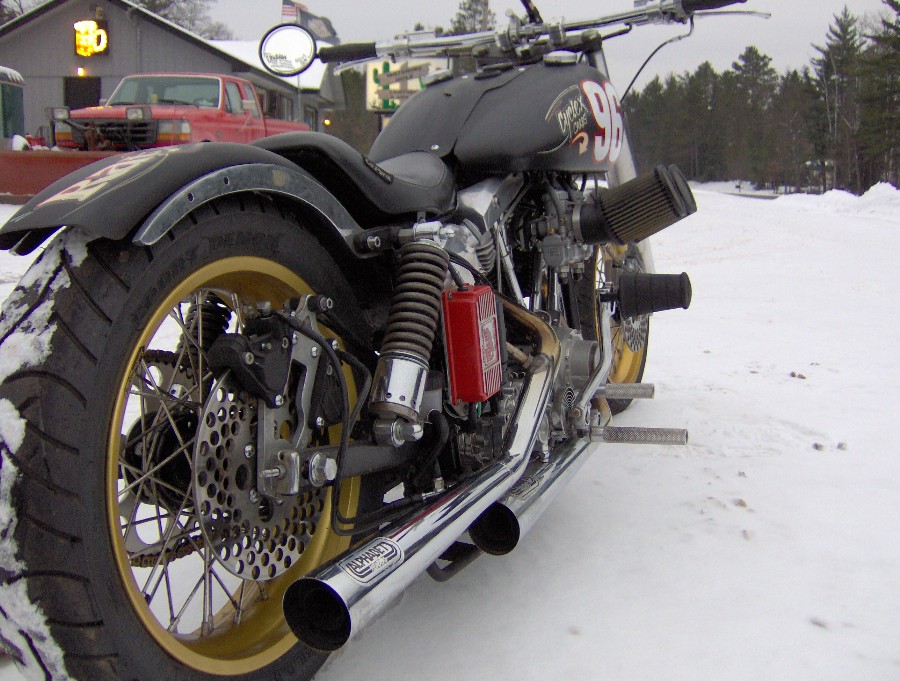

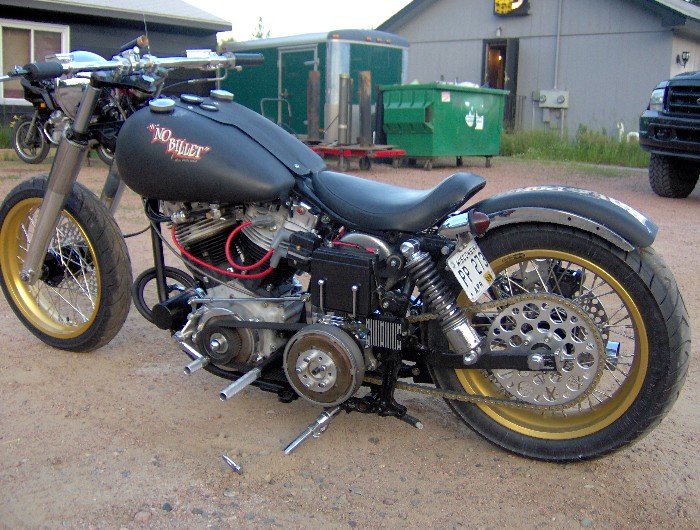

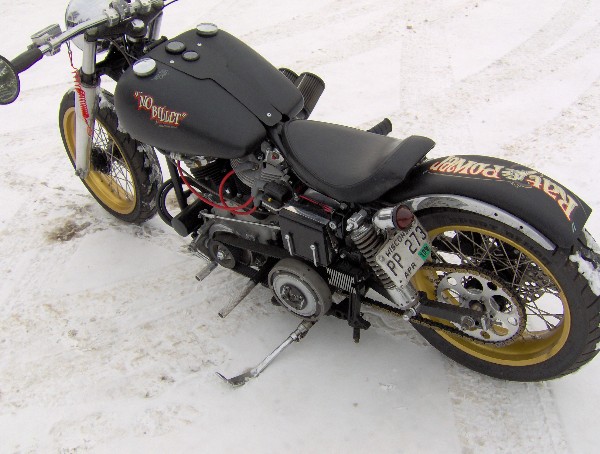

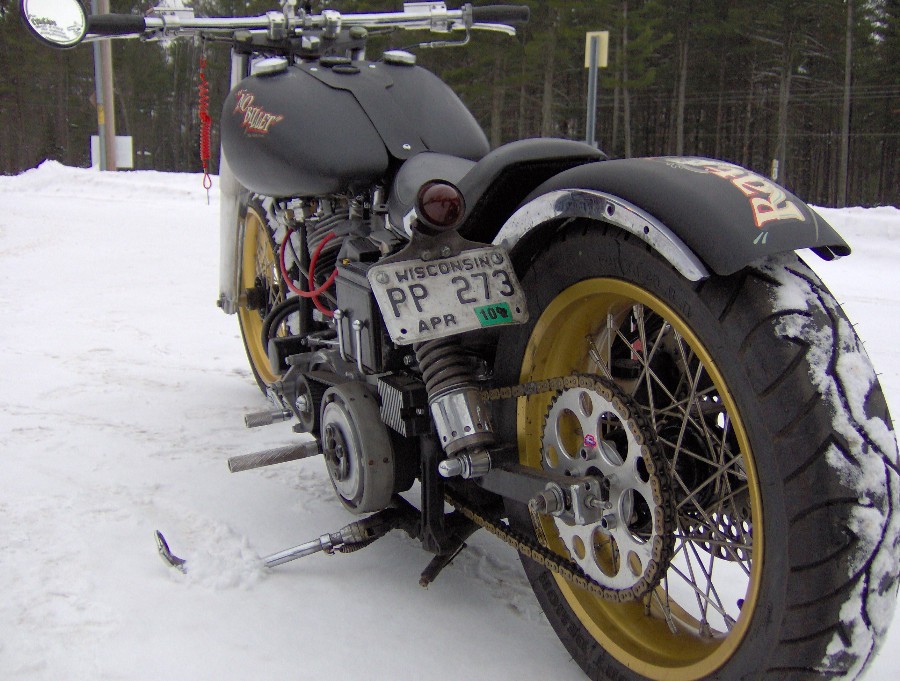

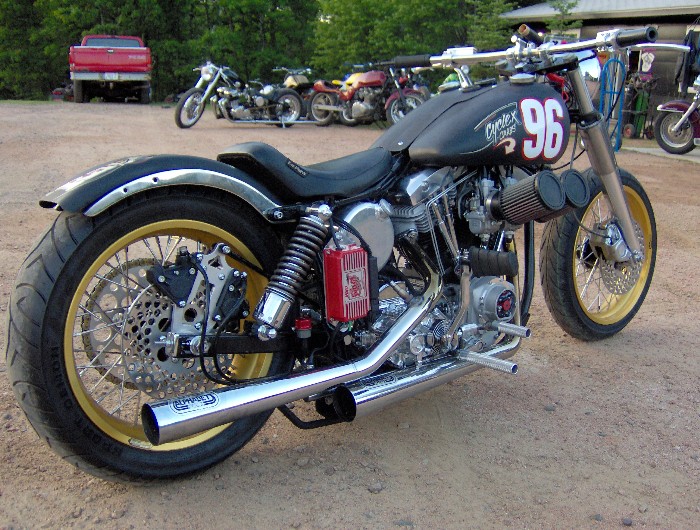

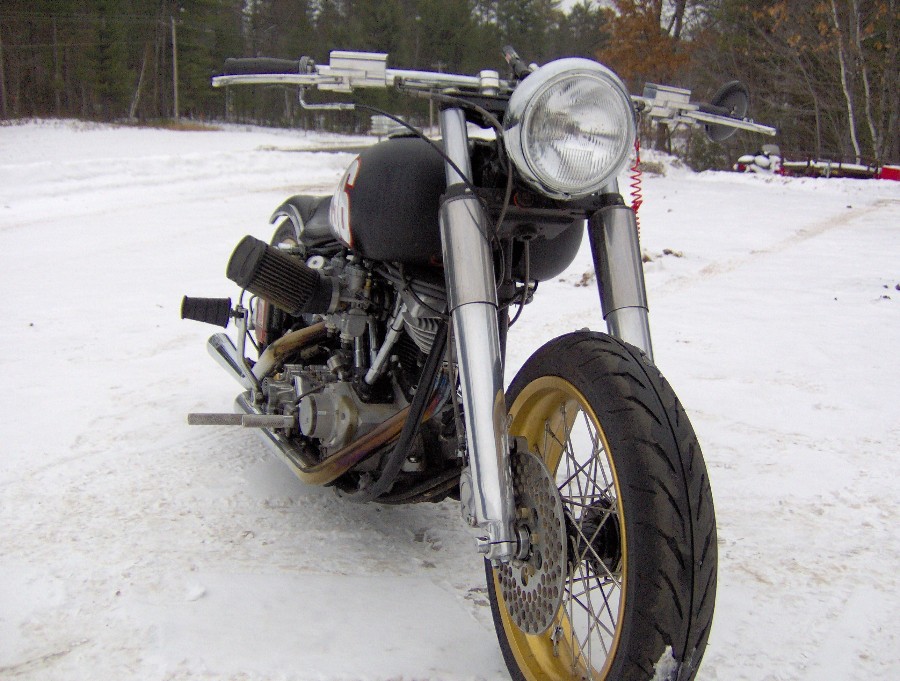

Dan Casey has our carburetor system on his 1966 shovelhead and said,
Quote:
" Being around HD's my whole life, I have used almost every carburetor
offered. After installing The
Cycle X carburetor system, I do not
want to get off my bike.
My shovelhead is stock and have racing and beating bikes that I really shouldn't.
This bike pulls from down low and never stops. "
Dan realizes that there will be skeptics, because he was a skeptic himself and
has offered his phone number to any one .
Jetting on the
fly !!!!!!!!!
This extra gas circuit has many
benefits.
Completely adjustable external jetting system.
Delivers pre-atomized ( vaporized ) fuel for maximum horsepower.
Has enough external adjustability for any altitude, temperature or engine
modifications.
Float levels can be checked at a glance.
* fast and easy tuning
* increases horsepower
* improved fuel efficiency
* quicker throttle response
* billet aluminum construction
* delivers pre-atomized fuel to the engine
* has no moving parts or electronics to fail
* compensates for altitude and temperature
This
device is an advanced fuel circuit that may be adjusted manually through its
precision needle valve.
This
device supplies 10% to 15% of overall fuel in a pre-atomized or vapor state.
It has its own fuel mixing chamber where air and fuel are properly mixed and
per-atomized (vaporized). Fuel is drawn into this chamber from the float
bowl, then united and swirled at high speed with air from the air correction
circuit, thus vaporizing the fuel. This vaporized fuel is then inducted
into the carburetor. This fuel weighs only 10% of what raw fuel weighs.
The light weight of this fuel charge allows quick response to slight changes in
engine fuel demand (engine load). You will have quicker throttle response, a
broader power band, improved fuel efficiency, cooler running engine, longer plug
life and excellent burn down protection. The fuel induction is controlled
by engine vacuum, air flow, and acoustic sound signal,. The heavier your
engine is loaded the more fuel this device feeds. When engine load
decreases, so does this device's fuel flow.
You
now have a demand feed fuel induction system that feeds fuel linear to engine
load.
External jetting system ( Honda
twin carburetor system )
# CA 002
$229.00
