Valve Train Page

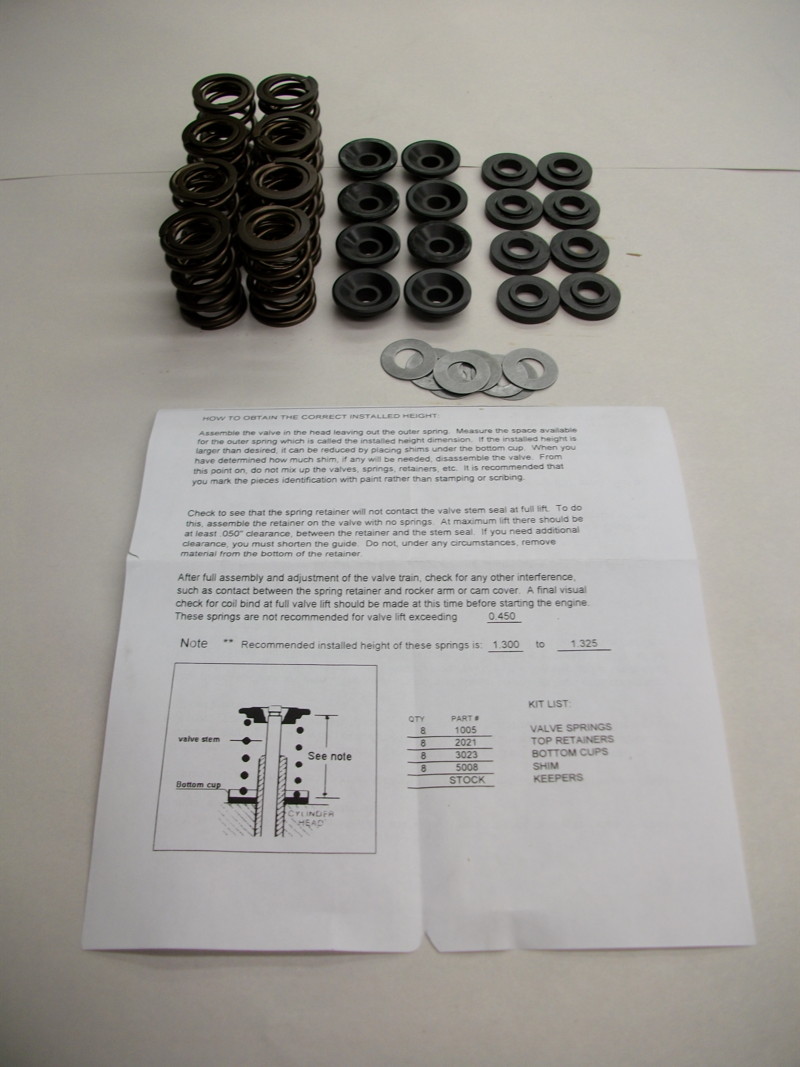

Cycle X Racing Springs

World class spring set for your go fast project. ( or stocker project )
Complete kit includes:
Instructions............ ( to help install your springs correctly )
Springs................... ( the best money can buy )
Lower retainers and shims.
Top retainers:
7075 T-6 aluminum with hard anodized coating for an added 1000 lbs. of strength. ( super light weight )

Note:
Refer to engine tech page for fitments.
This spring set is for early keeper style.

$199.00 complete kit #RS-001

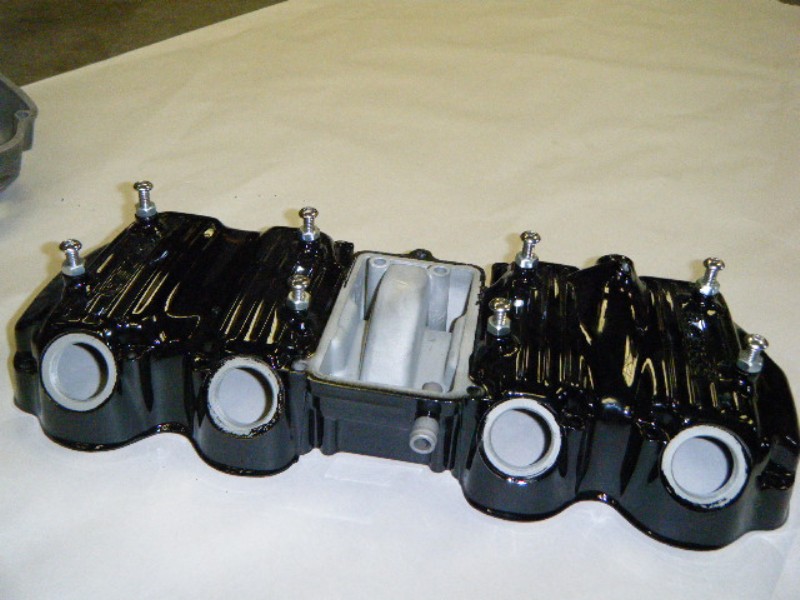

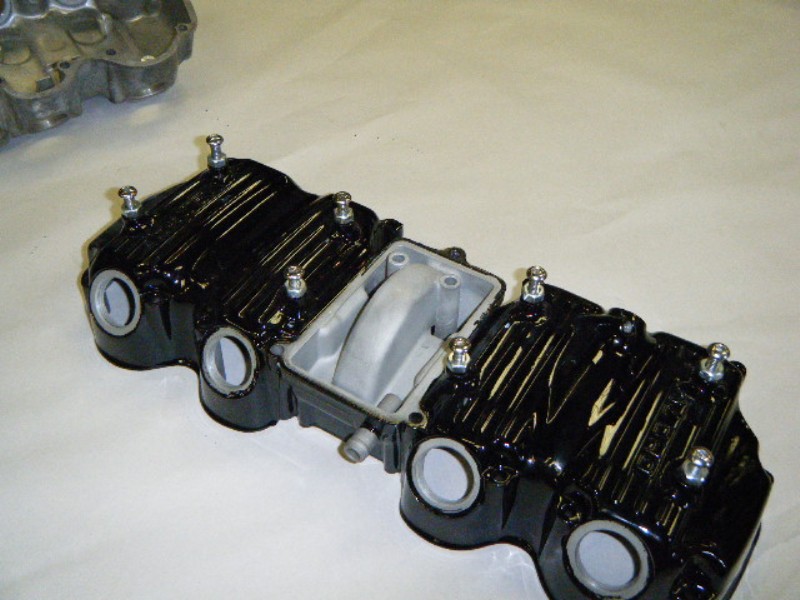

Welded valve covers
Look close at the photo's and notice the welded bungs.
This procedure was done to help keep the cam towers stabilized with higher lift cams.
Valve covers are jig drilled.
Welded.
Then finial machined for perfect fitment.

Simply install valve cover and insert (8) 1/4 coarse bolts. Tighten bolts as instructed and lock down with jam nuts.
Covers are raw and will need to be powder coated, chromed or painted as needed.
$ 149.00 Call for details

Cycle X ....... Super Flow Valves:
Cycle X super flow valves outperform any valve on the market today. The Nitrite coating is perfect for high temperature, high RPM and run cooler.
The reduced stem diameter (.033) in the port area gives our valves greater flow for noticeable horsepower gains.
Cycle X valves are one piece forged, high nickel stainless steel alloy, swirl polished, strict tolerances and Nitride coated. Making our valves the obvious choice.
The first photo shows an aftermarket valve ,OEM and Cycle X valve, notice the reduced stem diameter in the port area.
Light weight?
A complete set of Cycle X valves weighed approx. 30 grams less than the competitions racing valves.
Designed for the preferred 69-76 spring retainers and keepers.

          $ 149.00 per set of 8 Sale
           ( 4 Intake and 4 Exhaust )
   # VL-100

$ 21.95 Single Intake Valve
# VL-200

$ 21.95 Single Exhaust Valve
# VL-300

Oversize intake valves ( 69-76 )
33.5 intake valves ( Superflow )
6 grams lighter per valve than the competitions
# VL-500
$ 29.95 per valve.

     HONDA SOHC HIGH PERFORMANCE CAM SHAFTS
Camshafts always raise a lot of questions: What kind of performance do you expect? What kind of top end power do you expect? What kind of riding do you do?   What kind of valve relief do your pistons have? Below are some camshaft profiles you will enjoy with-out the headaches that monster cams can produce with out background and experience behind you.
         FOR ADVICE ON BIGGER CAMSHAFT PROFILES, PLEASE CALL.


Broad power range. This cam will bolt right in stock engines. You will notice good power increase with this one. This camshaft profile was used on tight road-race tracks. You will like it.
.360 valve lift and 270 degree duration.
# EN-617 $ 199.00


Need a little more power? We have used this camshaft profile in stock displacement motors but check carefully. Works well with 836cc kits.
.360 valve lift and 280 degree duration.

# EN-618 $ 199.00


Here is a great cam for your 836cc hot street motor. Springs, big bore kit will be needed to utilize this cams potential.
.370 lift and .282 duration.

# EN-695 $ 199.00


Strong mid and top end power for street-strip. Use with big bore, headers, and valve springs

.370 valve lift and 290 degree duration.
# EN-696 $ 199.00

hondacb750highperformancecam5JPG (44246 bytes)

Excellent top end power.

.370 valve lift and 300 degree duration.
# EN-697 $ 199.00

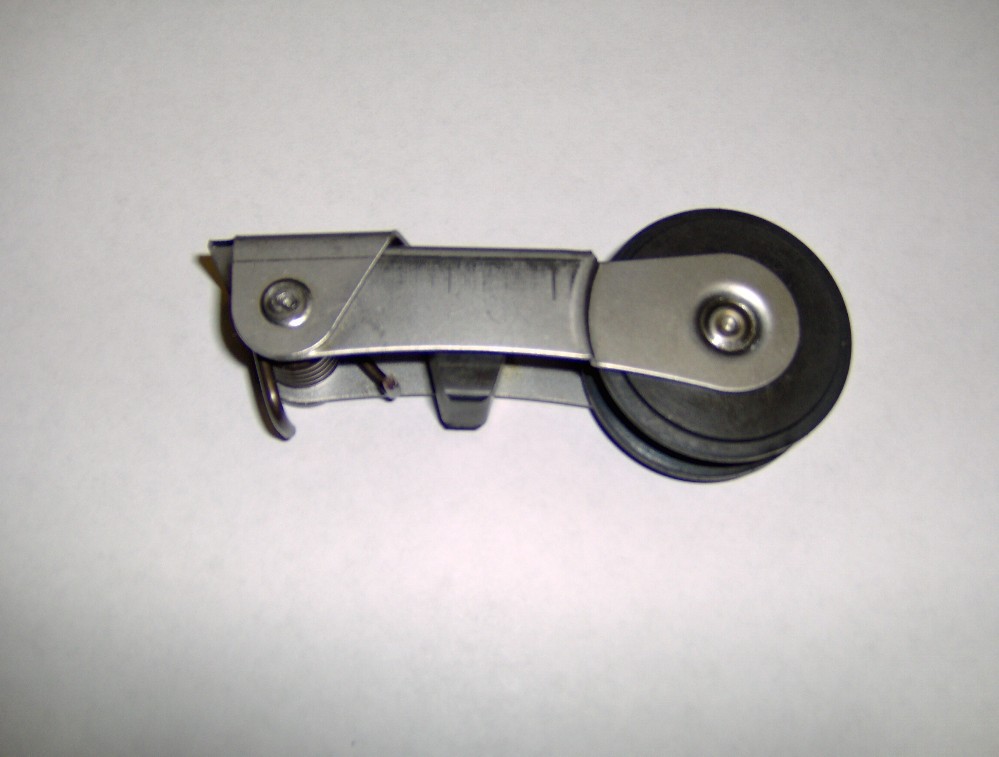

    cam chain tensioner parts
              You will need these cam chain tensioner parts so your honda sohc does not
         sound like a wash machine at idle speed.

CAM CHAIN ROLLER $ 24.95 # EN-629	ROLLER ASSEMBLY $ 54.95 #EN-630		SLIDER $ 23.00 # EN-631
Primary chains ---( Crankshaft to trans ): These endless chains are made by Honda and you need them. This is not a area to cut expenses on your motor project. $ 199.00 pair # EN-632		Primary chain tensioner ----- ( Crankshaft to trans ) You will need this. $ 79.95 # EN-633

ADJUSTABLE CAM SPROCKETS
                  (Free horsepower):
Billet steel perfectly cut heat treated cam chain sprockets. (sohc motors) Degreeing your cam is free horsepower. (the highest level)
          $ 39.00 each                   # EN-602

                                              Need More Cool Products ????

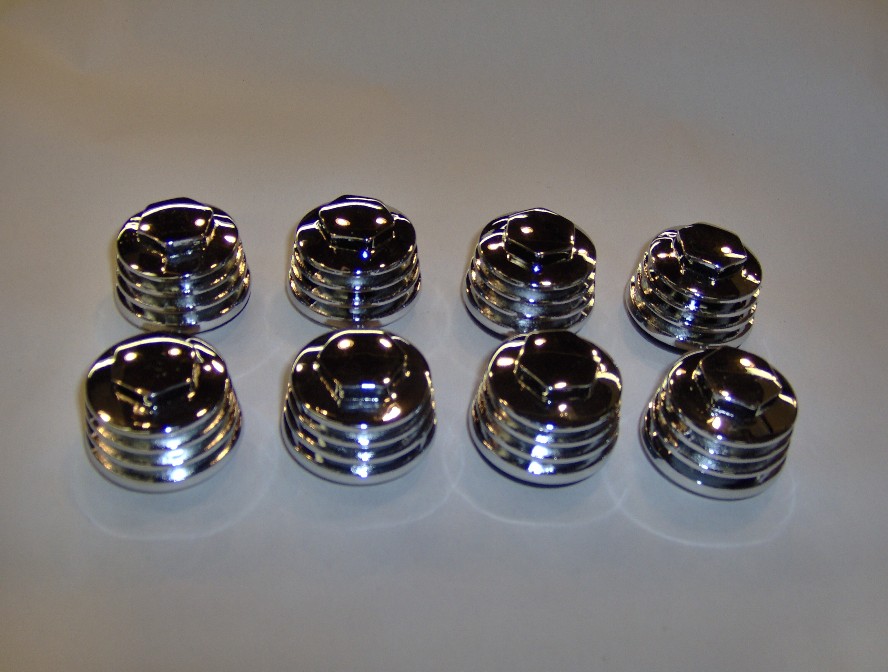

                                                           Check out the Honda 750 chrome valve covers. Brand New!
                                                                                 $ 39.00          # EN-1111

OUR CUSTOM VALVE COVERS ARE MADE IN AMERICA BY AMERICANS!!

                                                                    custom spiked valve covers # 1
                    Aggressive style valve inspection covers. These Cycle X spikes are not cheesy covers held on by Allen screws,
                          they thread into the valve cover like OEM. 2 1/2 inches long to allow more gas tank clearance than the #2 style.
                                                                            $ 129.00                # MD-700
                                                    TEMPORARILY OUT OF STOCK!

                                                                         CUSTOM SPIKED VALVE COVERS #2
                                                   Very cool ASSASSIN COVERS at 3 1/2 inches. Polished alloy.
                                                                  $ 129.00                    # MD-701
                                                                       NOW IN STOCK!

                                                              CUSTOM SPIKED VALVE COVERS #3
                               Our latest weapons, OOPS..... we mean our latest Valve Covers! 4 1/2 inches! These were a huge hit at the
                                    Chicago Show in February! Fits Honda SOHC and Honda 500, 550 from the 70's. They are alloy and
                                                                          come polished. We include the wrench for installation.
                                                                                          $ 129.00             # MD-702
                                                    TEMPORARILY OUT OF STOCK!

Here is what high level people do!
                      Chromed assassin spikes-----$ 228.00 for set, $ 129.00 for polished alloy ( see below)
                      Chromed valve cover----------(chroming alone for valve cover 125.00)
                      Chromed breather cover------(chroming alone for breather cover 30.00)

Honda CB750 F2 Supersport products

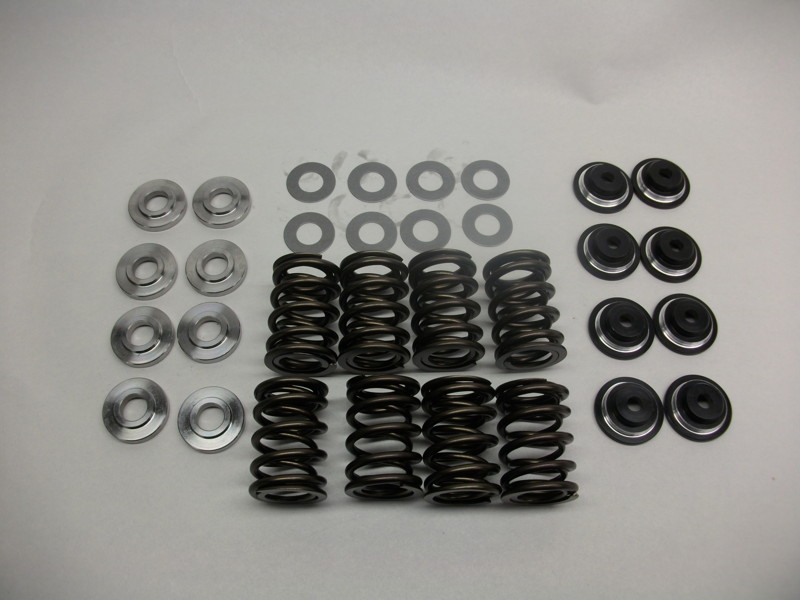

F2 ( 77-78 ) High performance valve spring set

This "complete" valve spring kit is designed for the 77-78 Honda cb750 F2 supersports.
The 77-78 F2's were notorious for top spring retainer failure, causing severe damage.
Whether you have a stock or high performance motor, this kit is a must.
Kit includes:
The best springs money can buy.
Lower spring retainers and shims.
Top retainers are made of 7075 aluminum with hard anodized coating for an added 1000lbs of strength.
Top retainers weigh 5 grams versus the heavy stock retainers ( 13 grams)
Instructions are included.

Note:
Many modern factory muscle bikes are using this type of top retainer.

$229.00 #F2-001

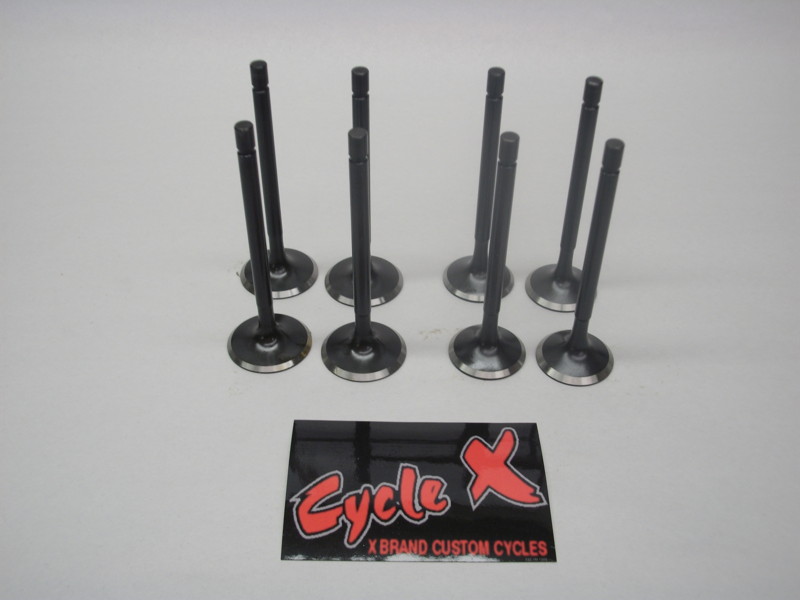

F2 ( 77-78 ) Super-flow valves

Cycle X super-flow valves for the (77-78 ) Honda cb750 F2 super sport.
Do not let the price fool you............. these valves are made of the best materials money can buy !!!!!!!!!!!

Honda no longer sells F2 super sport valves.
The competition sells F2 valves for twice the money.

$29.95 each #F2-002

$159.00 set of eight #F2-003

Honda ( 77-78 ) F2 top spring retainers
Well, just in case you forgot......... or never heard.
The top spring retainers are stamped steel and prone to failure.
We have complete spring kits for the F2's................ but if you are on a budget, consider these 7071 alloy retainers with hard anodized coatings.
Super light, super strong and super priced.

$99.00 #F2-005

Honda F-2 top end kit
Wiseco 836cc 10 1/4 compression kit ( with head gasket ) ............( f-2 design )
Super flow F-2 valves.
Valve guides.
Valve guide seals.
High performance springs.
Alloy hard anodized retainers.
Heavy duty cylinder studs.
High performance camshaft ( your choice )

#F2-006 $ 999.00

Honda F-2 head rebuild kit
Super flow valves
High performance springs
Alloy hard anodized spring retainers ( a must )
Valve guides and seals

#F2-007 $ 349.00

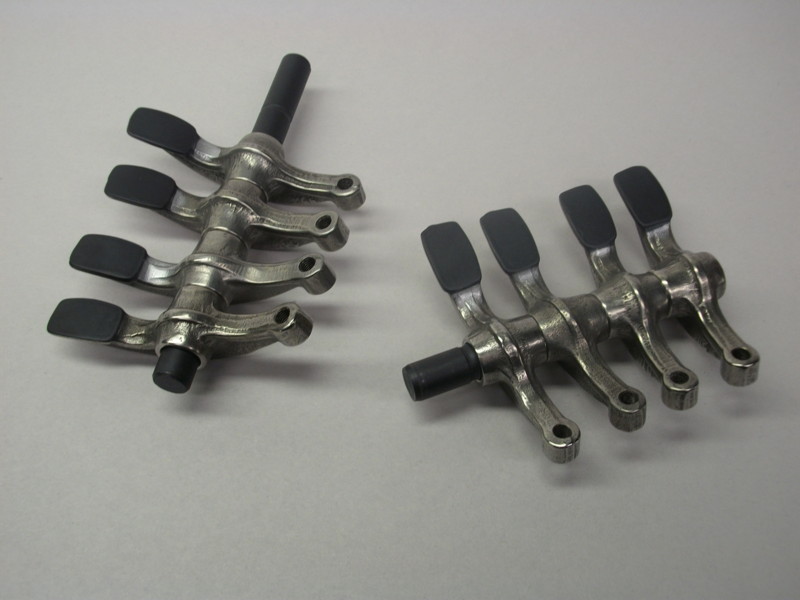

High-performance coated rocker arms and shafts

Rocker arms and shafts are etch prepped and coated with a Flora-Polymer that can withstand over 150 thousand PSI of load.
Greatly reduced friction will increase horsepower and reduce heat.
Flora-Polymer coatings will also retain oils for better lubrication.
Note:
Minor scuffing to rocker arm surfaces which were normally not acceptable are now usable with this process.
$ 99.00 for complete valve train   ( 4 shafts and 8 rocker arms ) exchange.

Speaking of coatings !!!!!!!!!!!!

Our piston skirt coatings will almost eliminate friction.
Our piston top heat barrier will reduce your cylinder head temperature up to 65 degrees.
Note:
During the testing process a Harley V-twin front piston was uncoated and the rear piston was coated.
Heat sensors showed a heat reduction of 65 degrees.
$ 129.00 for set of 4 pistons   ( cast or forged )

Speaking of heat coatings !!!!!!!!!!!
Cylinder combustion chambers will benefit greatly.

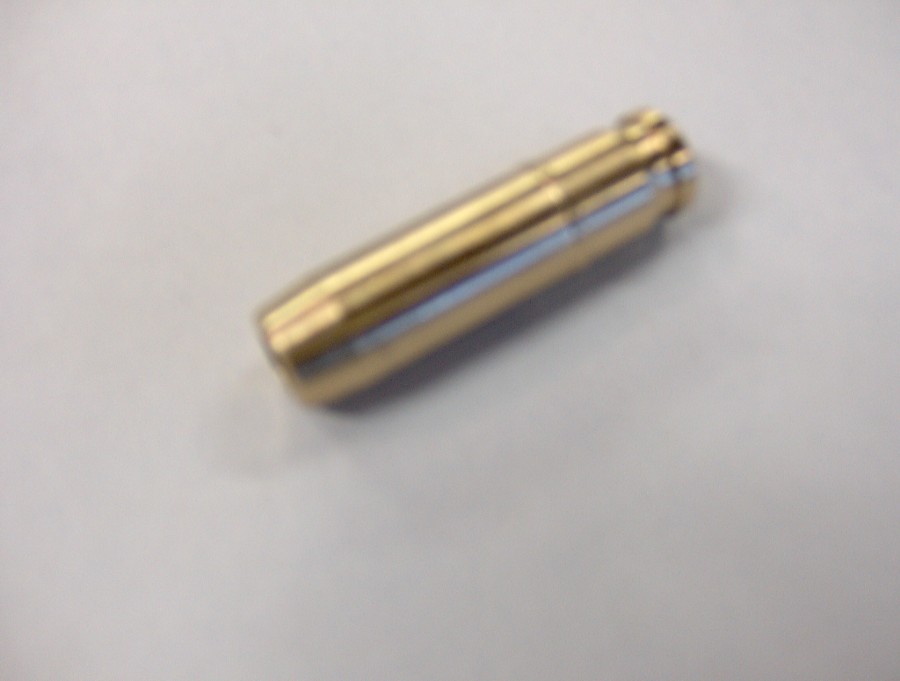

Over size valve guides
These valve guides are oversized ( .004 ) on the out side dia.
$ 14.95 ea # EN -668 0S4

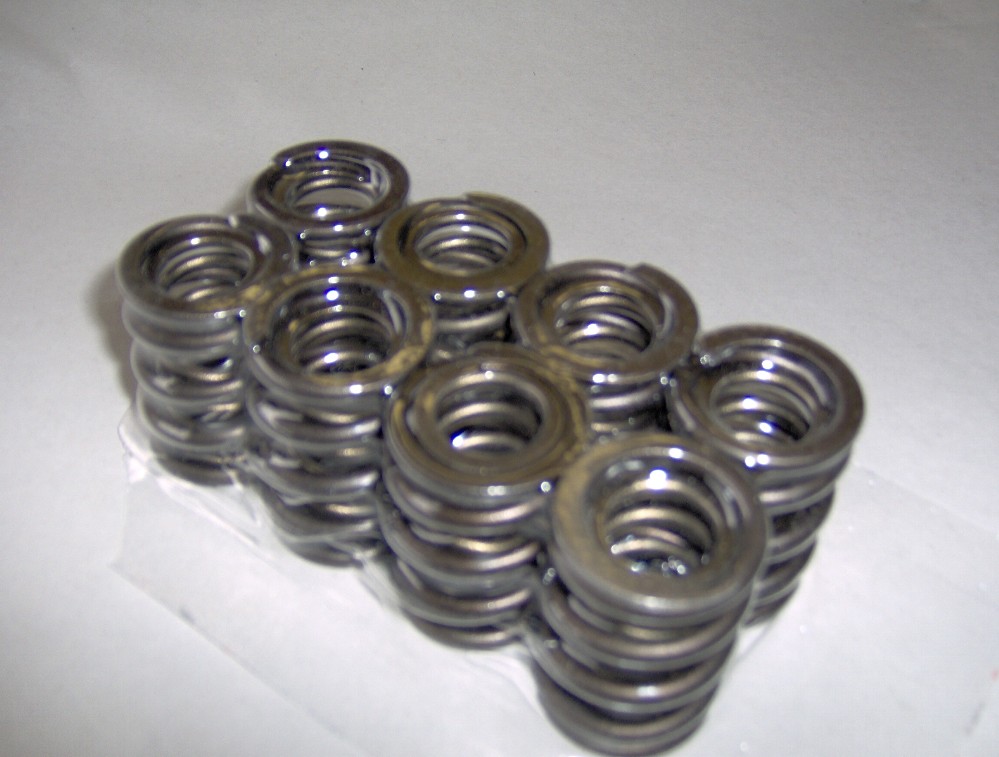

           HIGH PERFORMANCE VALVE SPRINGS:
Designed to accept high lift cams. Another secret to a great
               running motor is a good set of valve springs .
                      (besides yours are 30 years old).
                 $ 59.00                               # EN-622

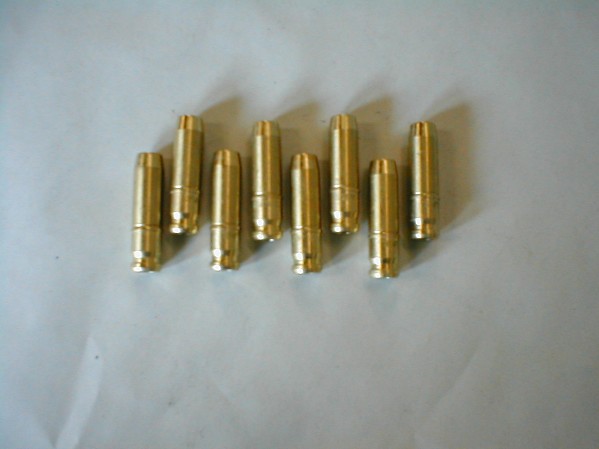

VALVE GUIDES:
You will need them. After valve guides are removed, this would be a perfect
time for port work (by a expert).
TECH TIP: Remove all carbon before pressing out the guides or you will
damage the guide hole.
$ 58.00 Per set # EN-621

Oversize valve guides
Oversize valve guides
These valve guides are over-sized ( .002 ) on the out side dia.
$ 14.95 each # EN- 669 OS2

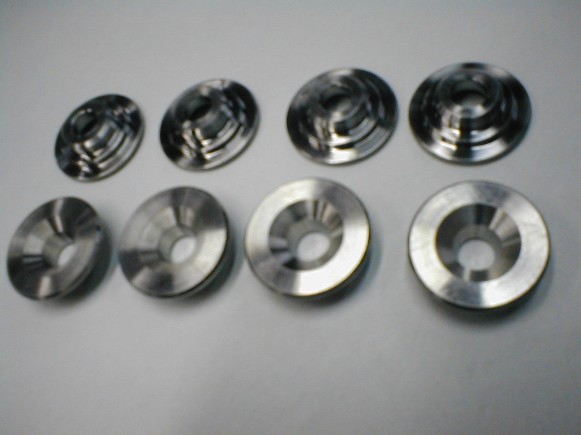

TITANIUM VALVE
SPRING RETAINERS
$ 119.00 per set # EN-623 Note: .......... Check tech page for fitment of Titanium retainers

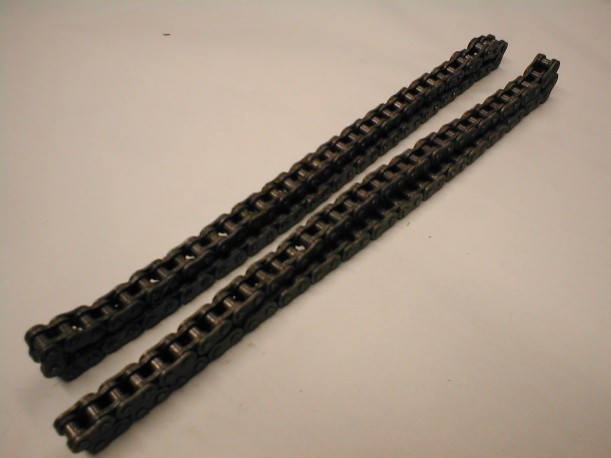

        HEAVY DUTY CAM CHAIN:
This is another weak link to the Honda
    750 sohc motors. These chains are
         clearly stronger than stock.
   TECH TIP: Soak cam chains in oil before installation, They will last longer.
              $ 39.00       # EN-628

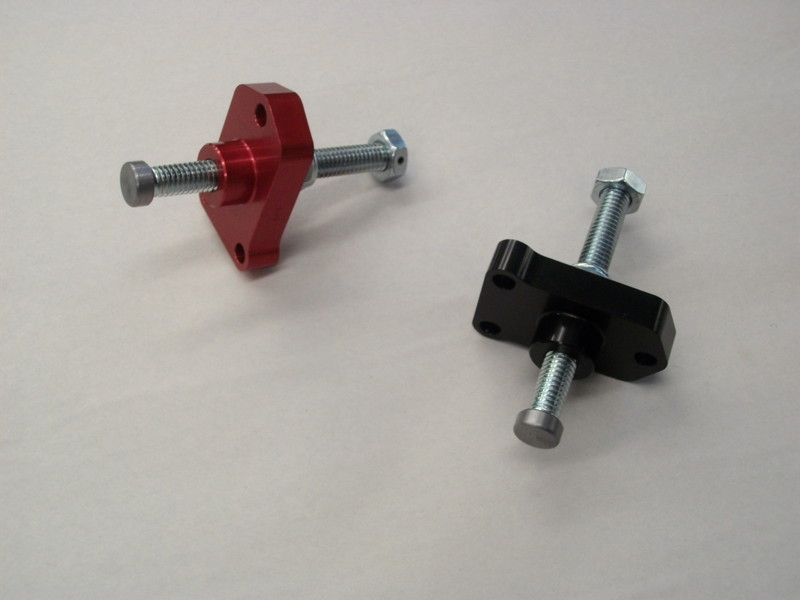

Cam Chain Tensioners

MDU-012 (Red) $50.65

MDU-013 (Black) $50.65

       HEAVY DUTY CYLINDER
                         STUDS:
This is one of Honda 750"s weak areas. These cylinder studs are installed on all of our motors (stock or fighter motors). They will eliminate head gasket problems because they will not stretch and will allow you to torque your head correctly.
        $ 78.95                  # EN-616
