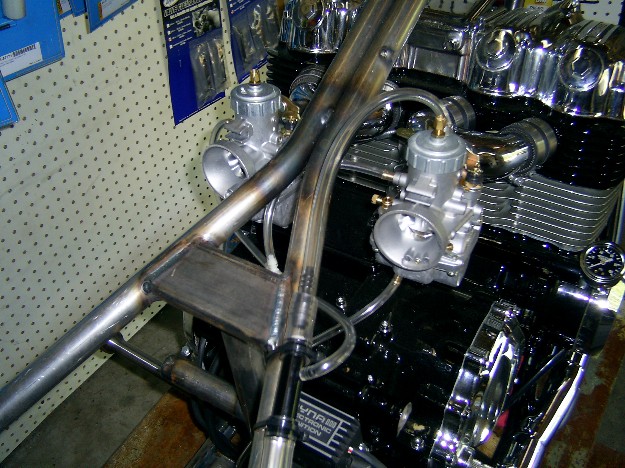

Honda cb750 SOHC  carburetor system ( almost done ) Pictured is a photo of our test bike. These 30mm carb's have been tested on stock and high-performance motors with great results. If you like instant throttle response and acceleration these carb's might be for you. Fits on stock frames. (4) 30mm flat slide carburetors. 4 into 1 cable ( fits stock throttle housing ) Extra jets ( if needed ) Projected cost............................... $ 549.00

THE HIGHEST LEVEL

( Its about time ) New carburetion system for Honda 750 SOHC

                                           Item Description

QUESTION : Tired of your stock, leaking, lean popping, misadjusted, old looking carbs?

QUESTION : Why do stock carbs make that annoying sucking noise while driving down he road?

ANSWERS : Eliminate these problems with our NEW carb system, prejetted, DYNO tested, best looking carb system hands down.

We designed this carb system for easy maintenance and looks. Dyno testing was done for the proper fuel and air mixture.
Our test bike had 44+ thousand miles on it. Gave it a mini tune up, and we went from 51 HP to 58.8 HP.(rear wheel)
Same bike, Same gas, Same gearing, etc...
Did we mention that stupid sucking noise is gone?
We are here to help you with questions. E-mail with basic questions or call Ken for details at # 715-356-7346.

NOTE: We are working on a high performance version of this system. (836 cc, cam, fully ported head)
Apparently some of you want to go 150 miles  per hour on your chopper.
This system is 12 months in the making. It is REAL!

ATTENTION: We will only be selling the Econo Carb Kit. The choice of are filters are listed
                                           below and will be sold at additional cost.

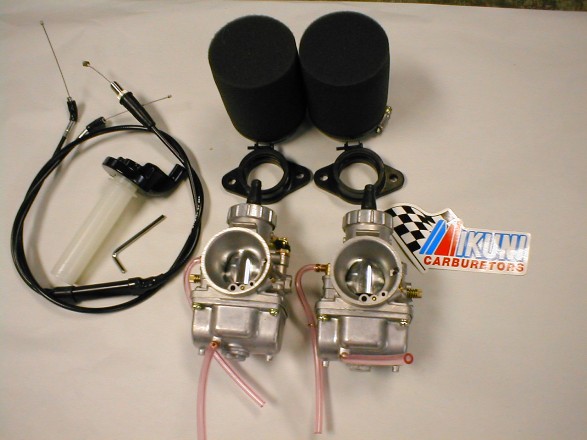

                                                                   Kit includes:

                                                              (2) VM34 mm Mikuni carbs (prejetted)

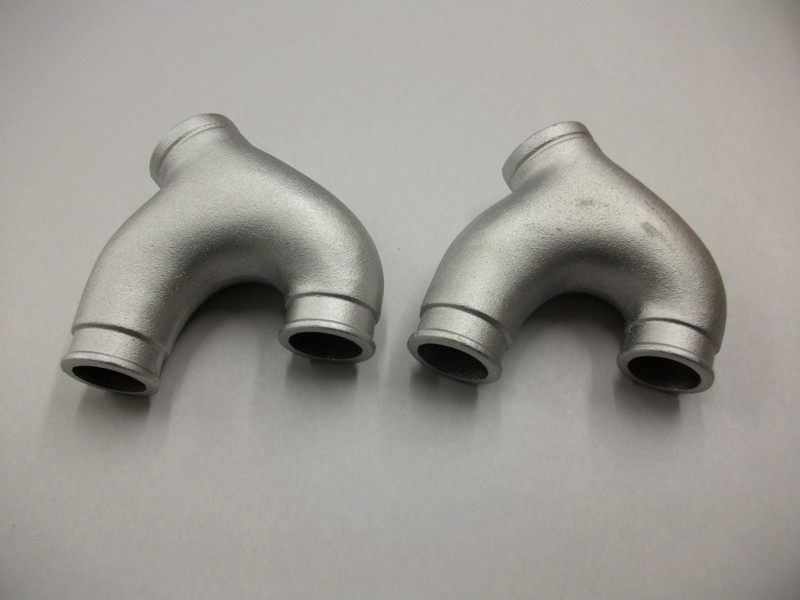

                                                                       Special cast alloy  manifolds.
                                                                 Motion Pro turbo throttle (7/8 bars)
                                                                         Motion Pro throttle cable.

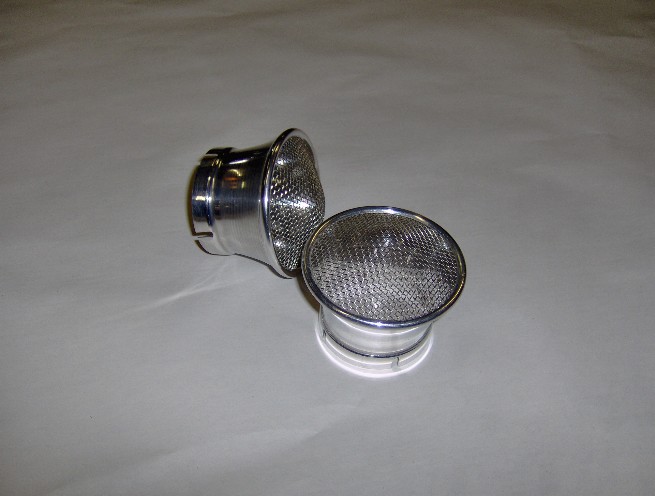

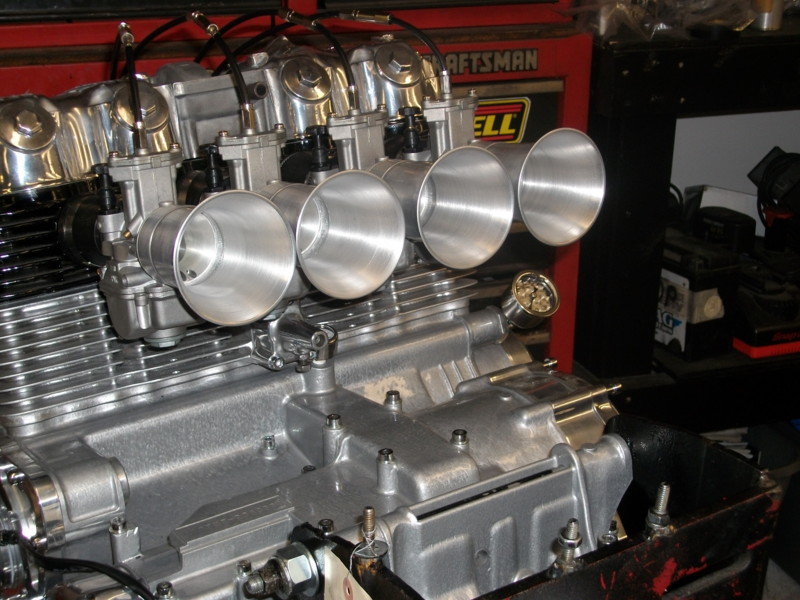

                                                              Velocity stacks ( screen and foam type)
                                                                  Carb rubbers and stainless clamps.
                                                                               Instruction sheet
                                                                                     Extra jets

                                                                          $499.00
                                                # CA-001  CAL TO ORDER



                                                          WE MADE THEM...   THEY USED THEM...

 " The CycleX carb system is the best new product developed in 30 years. Simple, Dialed in and priced right. We wouldn’t even consider anything else. "                                                                                                                                      Jeff Zeller, Custom Choppers Inc.      ( Boulder Junction, WI )

" The CycleX manifolds with Mikuni carbs are better than any of these modifications ( Individually or collectively. )  Velocity stacks, straight pipes, cam, larger pistons.  They're easy to install and the quickest way to get massive horsepower gains."                                        Rick Hoover        ( Saint Charles, MO )

"These carbs and manifolds are nothing but the best! The service you get from Ken is even better. There is nothing I know that compares. If you are thinking of
buying them, don't hesitate. You will not be sorry. The performance is truly real and not hype."
                                                                                                                                        Stacey Glenn Barnard ( Bainbridge,NY)

 " The difference between Ken's Carbs and stock is UNBELIEVABLE!  This motor has never run this well since I first put it  together!"
     Cliff Watkins         ( Irving, TX )

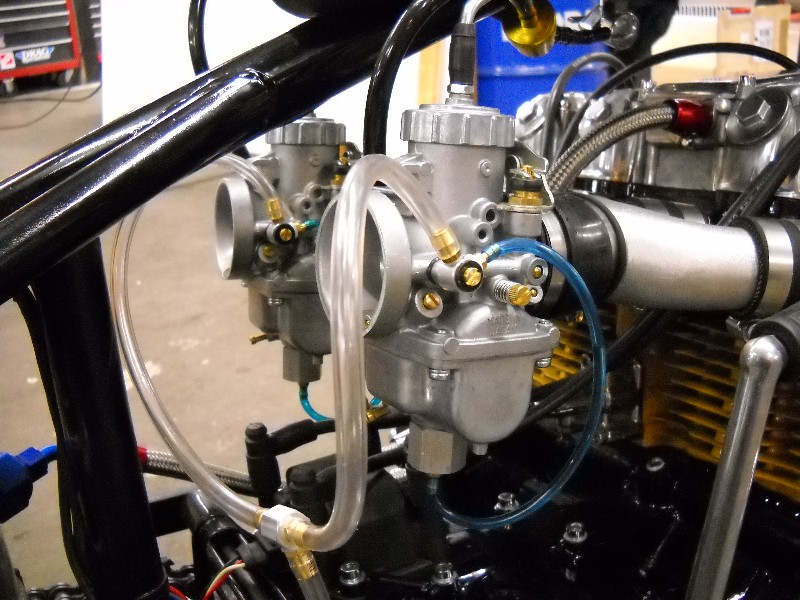

                       Jetting on the fly !!!!!!!!


This extra gas circuit has many benefits.

Completely adjustable external jetting system.
Delivers pre-atomized ( vaporized ) fuel for maximum horsepower.
Has enough external adjustability for any altitude, temperature or engine modifications.
Float levels can be checked at a glance.

* fast and easy tuning

* increases horsepower

* improved fuel efficiency

* quicker throttle response

* billet aluminum construction

* delivers pre-atomized fuel to the engine

* has no moving parts or electronics to fail

* compensates for altitude and temperature

This device is an advanced fuel circuit that may be adjusted manually through its precision needle valve.

This device supplies 10% to 15% of overall fuel in a pre-atomized or vapor state.  It has its own fuel mixing chamber where air and fuel are properly mixed and per-atomized (vaporized).  Fuel is drawn into this chamber from the float bowl, then united and swirled at high speed with air from the air correction circuit, thus vaporizing the fuel.  This vaporized fuel is then inducted into the carburetor.  This fuel weighs only 10% of what raw fuel weighs.  The light weight of this fuel charge allows quick response to slight changes in engine fuel demand (engine load). You will have quicker throttle response, a broader power band, improved fuel efficiency, cooler running engine, longer plug life and excellent burn down protection.  The fuel induction is controlled by engine vacuum, air flow, and acoustic sound signal,.  The heavier your engine is loaded the more fuel  this device feeds.  When engine load decreases, so does this device's fuel flow.

You now have a demand feed fuel induction system that feeds fuel linear to engine load.

External jetting system
# CA 002
$229.00

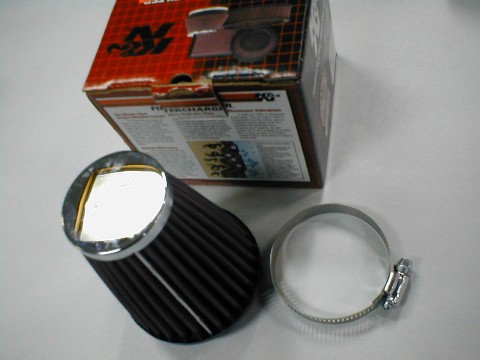

                                      Carb System Accessories

DUAL CARB SYSTEM  AIR FILTERS   -------------   NEW PRODUCT                                                                                                                                                                                       Add some retro to your petro.                          Smooth or louvered air filters for CYCLE X dual carburetor system.  $ 49.00 per pair
LOUVERED FILTER SET  # AF-801	SMOOTH FILTER SET       # AF-802

PANCAKE AIR FILTERS FOR THE           CYCLE X CARB KIT  These air filters feature a free flowing element with a chrome face. We like the off-set mounting flange so the filters can be rotated to your desired look.           $ 49.00 per pair        # FI-8998	FOAMY AIR FILTERS SET FOR       THE CYCLE X CARB KIT Foam air filters with chrome end caps. These are some of our favorites  because they look good and  are priced right. These are also some of our  favorites because they are made in the USA!       $ 35.95 per pair           #CA-003	K&N Air Filters For The Cycle X                     Carb System:  simply the best for the carb system      $ 82.95 FOR PAIR       # CA-004
THE ULTIMATE SPARK PLUGS: Apparently technology has reached the spark plug world. There was a few people who have our  Carb System and loved the system but went through a  few spark plugs now and then. They changed to these NGK IRDIUM Spark Plugs and the plugs had a perfect brown plug reading.  We can not take credit for discovering these spark plugs.      $ 42.00 SET OF 4      #  CA-006	Carb system fuel line                    pre-bent : Same fuel line used on the superbobber because the fuel line makes a nice bend over the carb. 18 inches.          $ 13.95 each           # CA-097	Carb system vent line:  If you do not like the vent line mikuni uses, use this! Shiny black vent line in 3 foot length's         $ 6.95 per 3 feet       # CA-098

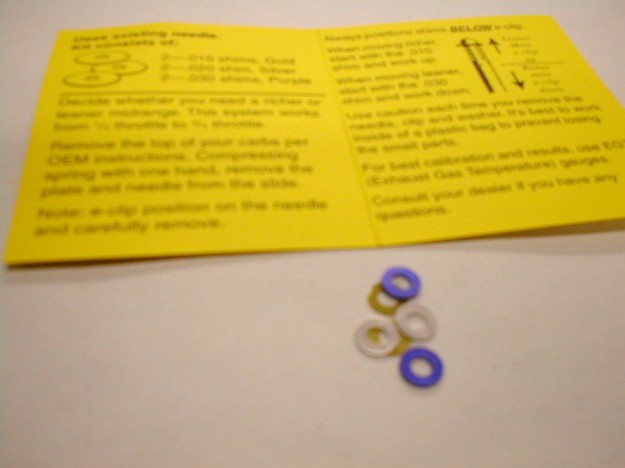

MIKUNI needle shim kit: This is what we use for precise midrange tuning on our carb systems.  Each needle e-clip position moves the needle  .040 ( forty thousandths ) at a time. This large adjustment can sometimes take you rich to lean ( or visa versa ). This shim kit will allow you to fine tune your bike in increments of .010 ( ten thousands ) at a time. Note: The needle adjustment will affect your tuning from 1/4 to 3/4 throttle.                $ 11.00         # CA-099	Carb Sync tool:  These ( 4 cylinder ) are what the factory Honda people used years ago.  Mercury gauges have been discontinued ( EPA).  These kits are complete with everything needed to sync your bike. ( actually, we like these better than mercury gauges)                  $ 59.00   # CA-00100           OUT OF STOCK!	CYCLE X CARB KIT CARB                  SYNC TOOL :      These are the carb sync tools we use. They are quick and easy. Put the tool over the carb and a ball will rise (like mercury gauges) to equal   multi cyl.  machines.             $ 39.95            #CA-007

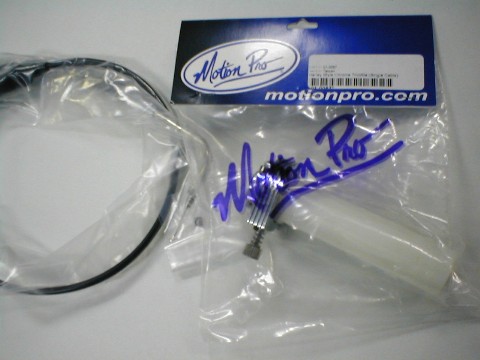

1 INCH  THROTTLE ASSEMBLY         (chrome) AND CABLE :   Motion pro quality assemblies for you 1 inch handle bar people.              $ 49.95              # CA-010		Cycle X manifolds. Build your own carb system if your so smart  !!!!!!!!!!!!! 199.00 per set






 Honda cb750 Keihin CR Special carburetors.
We are offering these carburetors in 29mm and 31mm for you Cafe and stock Honda framed enthusiasts.
We recommend phone calls for exact requirements.
              $755.00          # KCR-21
                                                                                                                      CALL TO ORDER



                Poor mans jetting kit
This extra gas circuit procedure has been done for years.
Carburetor jetting is an on going topic of discussion.
So, here is what we do from time to time.
Tap into the float bowl and insert pilot jets into the throat of the carburetor.
This procedure will give your bike a boost from  approx 1/4 to full throttle.
Also, it will allow you to check your float level at a glance and purge unwanted sediment from your bowl.

Kit includes
Drills.
Taps.
Jets. ( 2 sizes )
Fuel fittings.
Fuel line.


$ 59.95

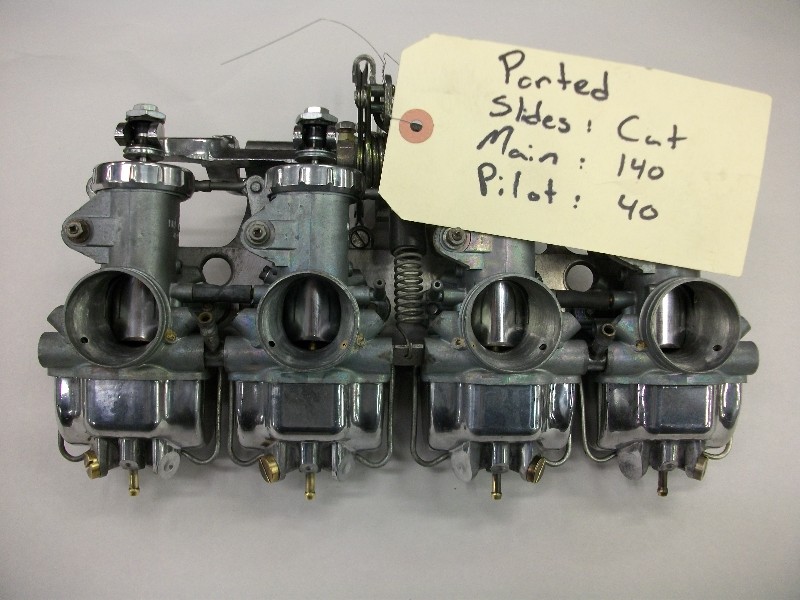

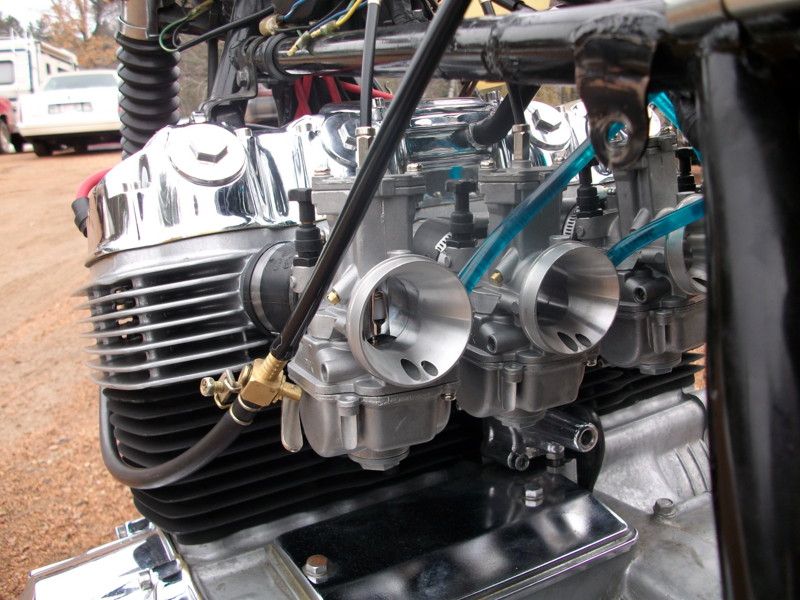

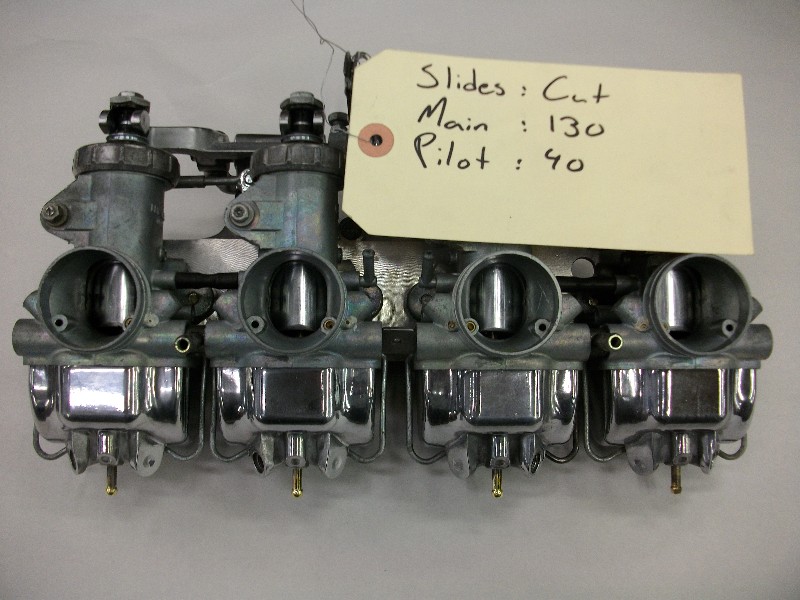

                                                  Cycle X Rebuilt Carb Program

Procedures:
-Completely Disassembled for inspection.
-Ultrasonically Cleaned.
    This method is the only way to thoroughly clean the passages which are often missed by conventional means.
-We have many jetting packages for high-performance, open air boxes, and free flowing exhaust systems.
    For example:
        Extra gas circuits ( poor mans version )
        Extra gas circuits ( adjust on the fly )
        Cut slides ( instant throttle response)
        Air jet installation  ( explained below )
        Wide Selection of jets ( to fit your specific needs )
        Bench tested and bench synched.

Note:
In some cases it could be very difficult to jet or modify carbs for spot-on performance when alterations are made, other than stock.
( Turning screws, raising or lowering needle clip positions or possible jet changes might be needed. )
-Polished Float Bowls ( for a little extra shine )

Prices:
Carb Rebuild (your carbs)
Ultrasonic cleaned, polished bowls and your choice of jets.
Parts and labor....... $ 275.00

Additional  modifications:
Carburetor set with above mentioned procedures. ( in case you do not have a set or yours are not rebuildable )
add  $75

Cut Slides:
Cutting the slides will bridge the gap between pilot circuits and needle position.
Generally used with free flowing air filters or engine mods. ( instant throttle response)
 add  $39 ( per set of 4)

Poor Man's Jet Kit :
This extra circuit will give you a noticeable boost in a wider range of throttle openings. ( approx 1/4 to full throttle )
Poor mans jet kit ( parts only )
add 59.00

Poor mans jet kit installation:
add $30.00

Porting carburetors ( set of four )
Another way to inexpensively extract more power from stock carbs ( works well with poor mans jet kit )
add $60

Air jet installation :
What's that ???????? ????????????
Read below

      #RC-01         Special $249.00 (no core needed)

      # #RC-02        Special $279.00 (no core needed)

Ever wonder why some bikes run better than others with the same components?

Why does my buddy’s bike have this jetting and mine doesn’t like that jetting?

For conversation sake, lets assume (Never assume.) that both bikes are in the same condition, same electrics, tuned up, altitude, etc…. (Mileage unknown.)

Why do some bikes require different jetting?

 Story:

 We had a customer’s motorcycle that began to run rich. All the normal tune-up stuff was ok.  He is the original owner and no changes were made. (Exhaust, fancy air filters, etc.)

Question: So why does the bike run richer?  Failing ignition?  Dirty air filter?  Float malfunctioning?  Bad fuel?

Answer: Worn carburetor needle jet and needle.

 Just like pistons, carburetors are working hard. Slides are moving up & down, being pulled & pushed with intake pulses constantly wearing the inside of the needle jet.

The needle jets and needles are very precise and wear is immeasurable. The detection of this problem is sometimes difficult. (Unless you spend a $100.00 per hour on a Dyno.)

When you drive a bike at normal speeds, you are generally in the pilot circuit, slide cutaway, needle jet and in the needle a bit. These circuits work together delivering fuel to your motor. A little wear in the needle jet and needles is why some bikes with open exhaust, open air filters SOMETIMES run better with almost stock jetting. We wrote a tech article on exhaust systems and tuning and basically said: Select an exhaust system you like and jet accordingly with an open mind. Same with this needle jet, needle topic: Do not go into jetting a bike with a preconceived idea about jetting. Keep an open mind.

We do not know if needle jets & needles are still available or if you really need them.

This was just a story and maybe this will help someday.


Here is what do from time to time.
Consider the needle jet like a drinking straw.
If you poked a hole in the straw, you would get a lesser amount of soda and a bit more air.
In a carburetor, you would get a bit less fuel and a bit more air ( atomized somewhat )

When the needle jet wears..............We install air jets so we can regulate the amount of air entering the needle jet.
This is another "external " method to make these old carb's user friendly.

Air jet installation:
Parts and labor  $ 40.00 ( set of 4)


                                                                                               P

                                      High performance dual carburetor system:
                                     Seems like a million hours went into the development of this high-per carb system.
                                          The research, development, and Dyno time was worth the effort!
                         Check out the internal modifications listed below and we will continue to update this page.

                                                                   bREAKING nEWS!

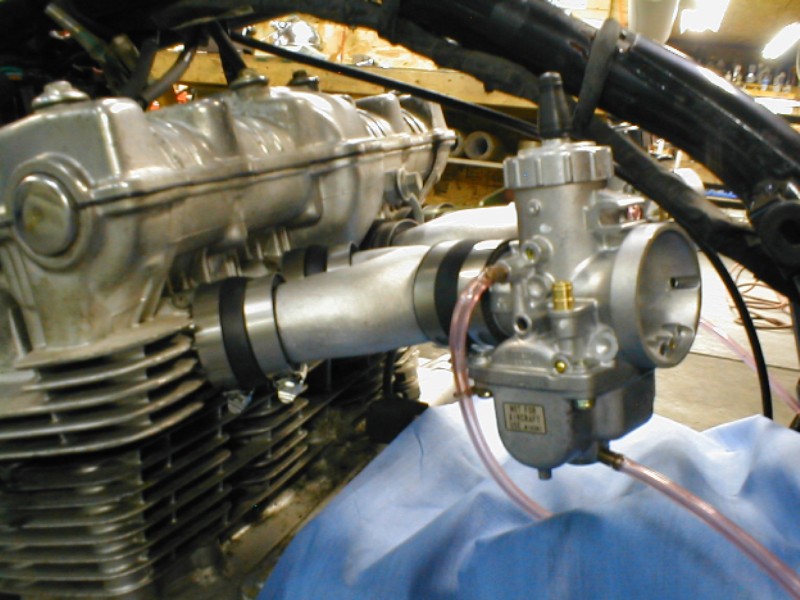

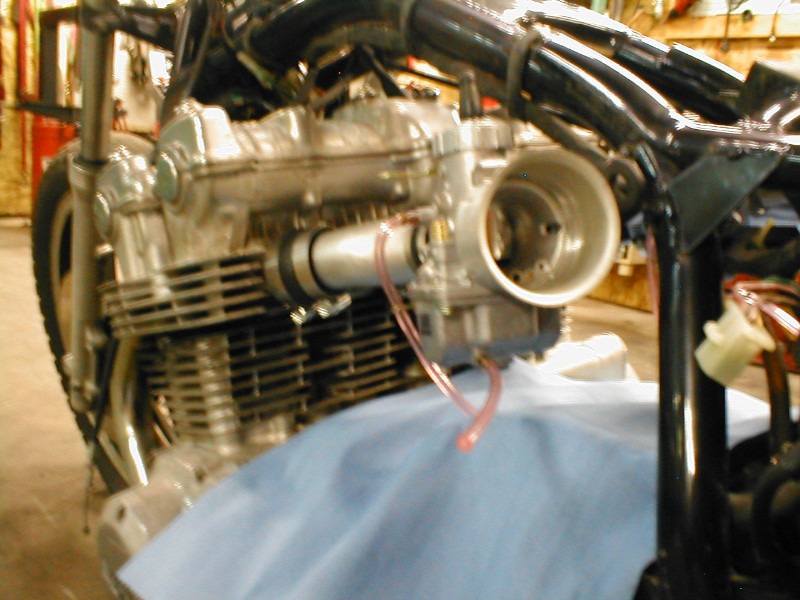

                 HONDA CB 750, 900 DOHC'S     Get a breath of fresh air ( and fuel ).
                                    Introducing our carb system for you dohc people.  Now available!
                                                                                   $ 499.00   CALL TO ORDER
